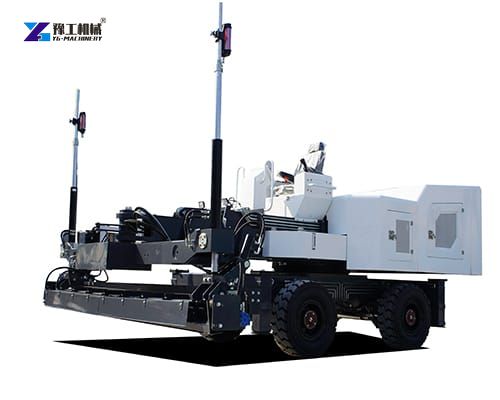

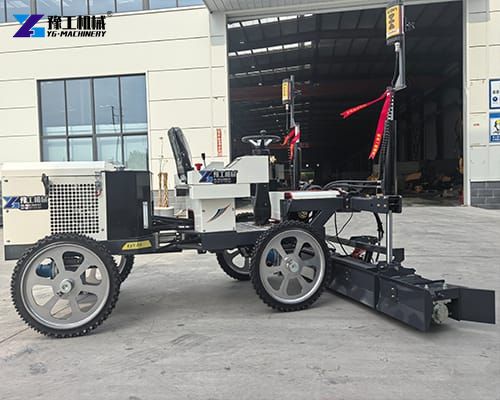

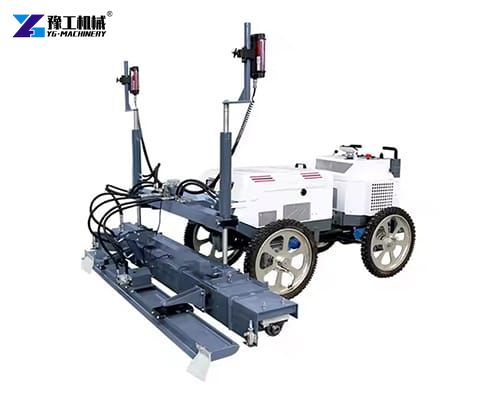

Concrete laser leveling machine is a state-of-the-art device designed to automate the process of spreading and leveling concrete slabs. Traditionally, concrete leveling relied on manual labor using tools such as screeds and trowels, which often led to inconsistencies in surface flatness. The laser leveling machine eliminates human error by employing laser-guided technology to achieve a perfectly level surface every time. The machine consists of a mobile screed head equipped with sensors that communicate with a rotating laser transmitter. The laser projects a reference plane across the work area, and the screed head adjusts its height in real-time to match this plane. This ensures that the concrete is distributed evenly, regardless of terrain irregularities or operator skill level.
Concrete Laser Leveling Machine Parameters
| Model | YG-CL300 | YG-CL300A | YG-ZP30 |
| Engine model | Briggs & Stratton 38E3/LONCIN/Honda 690 (optional) | Briggs & Stratton 38E3/LONCIN/Honda 690 (optional) | Yanmar 4TNV94L |
| Engine type | Gasoline, air-cooled 4-stroke, twin-cylinder engine | Gasoline, air-cooled 4-stroke, twin-cylinder engine | Diesel |
| Engine power | 22KW/30ps | 22.8KW/23ps/31ps | 35.5KW/48hp |
| Fuel capacity | 20L (operation time is about 8 hours | 20L (operation time is about 8 hours | 100L |
| Hydraulic oil capacity | 37L | 35L | 150L |
| Laser transmitter | Swiss Leica/Tower transmitter (optional) | Swiss Leica/Tower transmitter (optional) | Danfoss |
| Laser receiver | Swiss Leica/Tower receiver (optional) | Swiss Leica/Tower receiver (optional) | American Tempo |
| Laser system control effect | Plane, slope, double slope (three-dimensional) | Plane, slope, double slope (three-dimensional) | German Mopar |
| Laser system control method | Microcomputer laser scanning | Microcomputer laser scanning | Flat, inclined or double slope (3D) |
| Paving method | Hydraulic stirring cage paving | Hydraulic stirring cage paving | Microcomputer laser scanning |
| Vibration method/excitation force | Hydraulic vibration/2000N | Hydraulic vibration/2000N | Hydraulic Cage Paving |
| Vibration plate width | 2500mm | 3000mm | Hydraulic motor |
| Leveling thickness | 50-300mm | 60-300mm | Flip up and down for easy cleaning, left and right switching, blades made of highly wear-resistant material, more durable |
| Travel drive | Reducer motor integrated | Reducer motor integrated | 6000mm |
| Travel speed | 0-4Km/h (speed adjustable) | 0-4Km/h (speed adjustable) | 3100mm |
| Travel tire | Solid anti-skid and anti-puncture tires (optional wide tires) | Solid anti-skid and anti-puncture tires (optional wide tires) | 100-450mm |
| Body size | 3250x2850x1320mm | 3300x3460x1650mm | 4-8km/h 24m/min |
Benefits of Using Concrete Laser Leveling Machine
- Enhanced precision: Laser technology ensures accuracy, eliminating human error and delivering uniform surfaces.
- Increased efficiency: Machines work faster than manual labor.
- Cost savings: Reduced labor requirements and material waste (due to precise concrete placement) lower overall project expenses.
- Improved surface quality: Smooth, level surfaces reduce wear on tires/equipment and enhance aesthetic appeal.
- Versatility: Suitable for new pours, overlays, and repair work across diverse environments.
Common Applications of Concrete Laser Leveling
The concrete laser leveling machine is used in a wide range of construction scenarios. Some of the most common applications include:
- Industrial and warehouse floors
- Shopping malls and commercial centers
- Parking lots and garages
- Airport runways and taxiways
- Concrete roads and highways
- Sports arenas and stadiums
- Distribution centers and logistics hubs
- Large-scale agricultural buildings
Choosing The Suitable Laser Leveling Machine for Concrete
Selecting the appropriate concrete laser leveling machine machine depends on several factors
1 Project Scale
Smaller machines are ideal for residential jobs, while larger models with higher power output suit industrial projects
2 Laser System Compatibility
Ensure the machine integrates with industry-standard laser transmitters for consistent performance
3 Mobility And Maneuverability
Tracked machines excel on rough terrain, whereas wheeled models offer faster movement on stable surfaces.
