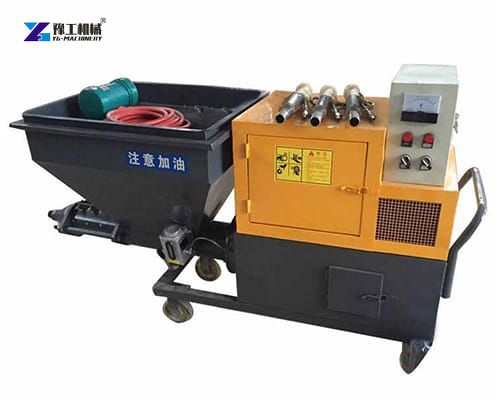

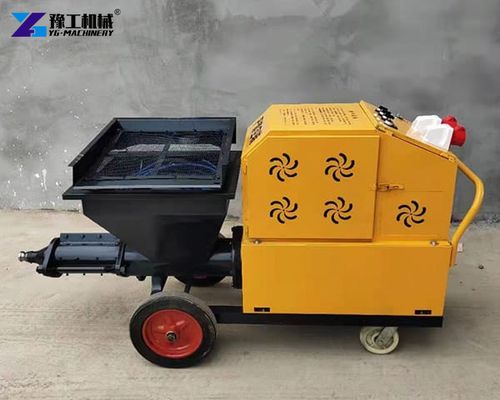

Mortar spraying machine is a specialized piece of construction equipment engineered to apply mortar, plaster, or similar viscous materials onto surfaces with speed and consistency. Unlike manual methods, which rely on human effort and skill, these machines use pneumatic or mechanical systems to propel mortar through a nozzle, ensuring even coverage and reduced waste. These machines are widely used in residential, commercial, and industrial projects for tasks such as interior and exterior wall coating, waterproofing, thermal insulation, and decorative finishes. Their versatility makes them indispensable for contractors aiming to meet tight deadlines without compromising quality.
Mortar Spraying Machine Parameters
| Model | YG311 | YG318 | YG500 | YG711 |
| Greatest Pressure | 3Mpa | 3Mpa | 3Mpa | 3Mpa |
| Capacity | 3㎡/h | 3㎡/h | 3㎡-4㎡/h | 4㎡/h |
| Applicable material ratio(water, ash, sand) | 0.7-1:1:3 | 0.7-1:1:3 | 0.7-1:1:3 | 0.7-1:1:3 |
| Main motor power | 4KW | 7.5KW | 8hp/12hp | 7.5KWstrength |
| Particle Size | ≤4mm | ≤8mm | ≤8mm | ≤8mm |
| Conveying Distance | H:30m/V:20m | H:50m/V:30m | H:50m/V:30m | H:50m/V:30m |
| Hopper Volume | 60L | 80L | 80L | 100L |
| The diameter of the feed delivery pipe | 32mm | 32mm | 32mm | 32mm |
| Weight | 200KG | 320KG | 320KG | 320KG |
How Does A Mortar Spraying Machine Work
The operational principle of a cement spraying machine revolves around three core components: a hopper, a pumping system, and a spray nozzle. Here’s a step-by-step breakdown of the process
Material Preparation
Dry or pre-mixed mortar is loaded into the machine’s hopper. Some advanced models feature built-in mixing mechanisms to combine water and dry mortar automatically, ensuring optimal consistency.
Pumping Mechanism
The machine’s pump draws the mortar from the hopper and pressurizes it. This pressure forces the material through a hose connected to the spray gun.
Spray Application
The operator directs the spray nozzle toward the target surface. Adjustable settings allow control over spray patterns, thickness, and speed. The high-velocity application ensures deep penetration into porous surfaces, enhancing adhesion and durability.
Finishing
Once sprayed, the mortar can be smoothed using manual tools or left as-is for textured finishes, depending on project requirements.
Advantages of Using A Cement Mortar Spray Machine
Investing in a mortar spraying machine offers numerous benefits that cater to both small-scale contractors and large construction firms. Below are the most notable advantages
- Enhanced Productivity
Manual mortar application is labor-intensive and time-consuming. The cement mortar spray machine can cover up to 10 times the area in the same timeframe, drastically accelerating project timelines. - Consistent Quality
Human operators may struggle to maintain uniform thickness and texture across vast areas. This precision reduces material waste and rework. - Cost Savings
Reduced labor costs, minimized material waste, and faster completion times contribute to a higher return on investment.

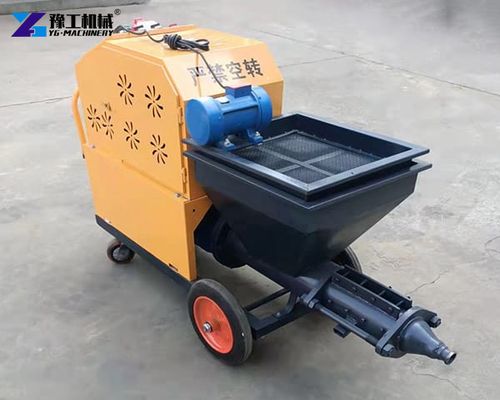

Applications of Cement Plaster Spray Machine
The versatility of mortar spraying machines makes them indispensable across various construction sectors.
- Residential Construction
From plastering interior walls to rendering exterior facades, these machines streamline homebuilding processes. - Commercial and Industrial Projects
Large-scale developments, such as shopping malls or warehouses, rely on mortar sprayers for rapid, high-quality finishes. - Infrastructure Repair
Bridges, tunnels, and highways benefit from mortar spraying machines’ ability to apply protective coatings in hard-to-reach areas. - Disaster Restoration
After events like earthquakes or floods, these machines help rebuild structures quickly and efficiently.
