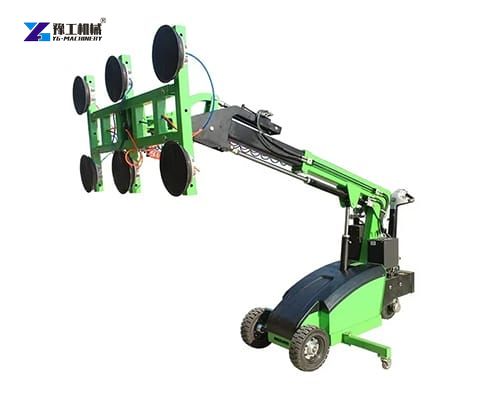

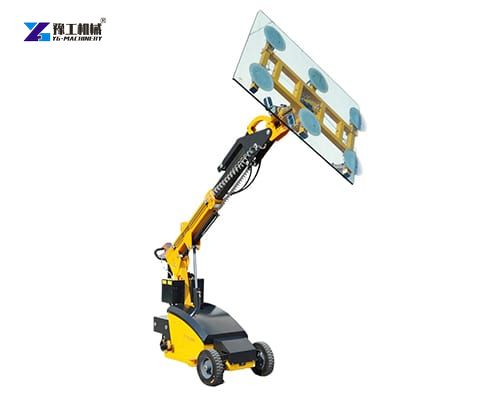

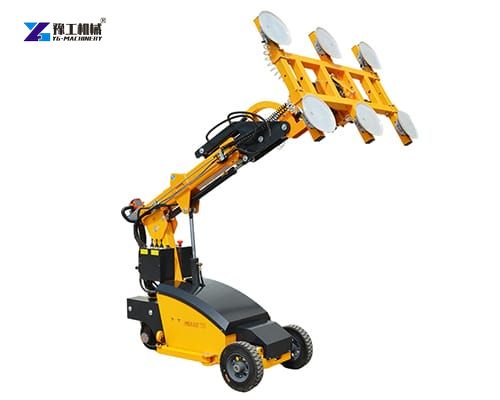

Glass vacuum lifting equipment uses suction power to securely grip and maneuver glass panels. These systems consist of vacuum pumps, suction pads, and control mechanisms that create a vacuum seal, enabling operators to lift heavy or delicate glass without direct contact. In industries where handling large, fragile glass panels is routine—such as construction, manufacturing, and interior design—glass vacuum lifter robots have become indispensable. This technology revolutionizes how professionals transport, position, and install glass, replacing outdated manual methods with precision-engineered systems that prioritize safety, efficiency, and cost-effectiveness.
Glass Vacuum Lifting Equipment Specifications
| Model Type | YG-LD-300 | YG-LD-400 | YG-LD-500 | YG-LD-600 | YG-LD-800 |
| Load Capacity | 300kg(retract)150kg(extend) | 400kg(retract)200kg(extend) | 500kg(retract)250kg(extend) | 600kg(retract)300kg(extend) | 800kg(retract)400kg(extend) |
| Lifting Height | 3500mm | 3500mm | 3700mm | 3700mm | 4500mm |
| QTY of Suction Cap | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs |
| Rubber Suction Cap | 300mm | Ø300mm | Ø300mm | Ø300mm | Ø300mm |
| Maintenance-free Battery | 2x12V/80AH | 2x12V/100AH | 2x12V/120AH | 2x12V/120AH | 2x12V/120AH |
| Battery Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger | Smart Charger |
| Drive motor | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W | 24V/1200W |
| Lifting Motor | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/6L | 24V/2000W/12L |
| Chassis L*W | 2660*810mm | 2660*810mm | 2800*810mm | 2800*810mm | 2800*810mm |
| Driving Wheel | Ø250x80mm | Ø250x80mm | Ø300x100mm | Ø300x100mm | Ø300x125mm |
| Packing Size(mm) | 2560*1030*1700 | 2560*1030*1700 | 2580*1050*1700 | 2580*1050*1700 | 3000*1250*2300 |
| N.W/G.W | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg |
| Loading Qty | 1x20GP/40GP: 6SETS/12SETS | ||||
| Movement | Automatic(4 kinds) | 1. The suction cup frame flips 180° electrically. 2. The support plate automatically retracts. 3. Hydraulic arm lifts electrically. 4. The base of the whole machine moves 100-150mm horizontally. | |||
| Manual (2kinds) | 1. The suction cup holder can be manually rotated 90 degrees (electrically powered, optional). 2. The suction cup holder can be manually rotated 360 degrees (electrically powered optional). | ||||
| Usages | Mainly used for the handling, movement, and installation of materials such as glass, marble, wood, iron plate, etc. | ||||
Working Principle of the Glass Vacuum Lifter Robot
Glass vacuum lifting equipment operates on the principle of creating a vacuum seal between suction pads and the glass surface. This seal generates a powerful holding force, allowing the equipment to lift and transport the glass panel. Key components include:
- Suction Pads: These are typically made of durable rubber or polyurethane and are designed to create an airtight seal. The number and size of suction pads vary depending on the weight and dimensions of the glass panels being handled.
- Vacuum Generator: This component creates a vacuum by removing air from the space between the suction pads and the glass surface. It can be powered by electricity, compressed air, or manual pumps.
- Frame and Lifting Mechanism: The frame provides structural support and houses the lifting mechanism, which can be manual, electric, or pneumatic. This mechanism allows for precise vertical and horizontal movement of the glass panel.
- Safety Features: Modern equipment incorporates various safety features, such as vacuum gauges, alarms, and backup power systems, to ensure safe operation.
- Control System: This system allows the operator to control the lifting, lowering, and tilting of the glass panel, often with remote capabilities.
Benefits of Glass Vacuum Lifting Equipment
- Unmatched Safety
Reduces Workplace Injuries: Manual handling of glass leads to musculoskeletal disorders, lacerations, and falls. Vacuum lifters eliminate direct contact with sharp edges and heavy loads. - Operational Efficiency
Faster Installation: Lifters secure glass in seconds, cutting setup time by up to 40%.
Single-Person Operation: Reduces labor needs, ideal for small teams or tight budgets. - Cost Savings
Lower Insurance Premiums: Fewer accidents mean reduced workers’ compensation costs.
Minimal Material Waste: Precision handling reduces breakage, saving on replacement costs.
