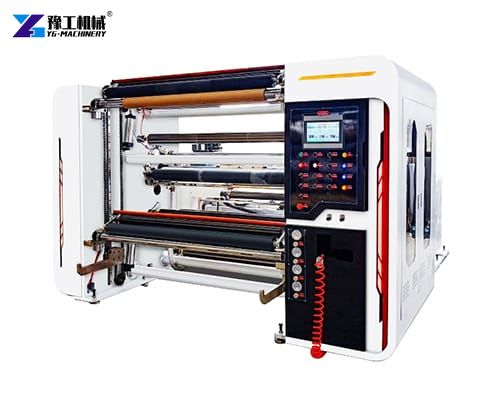

Paper Slitter Rewinder

Paper slitter rewinder is an industrial machine designed to cut wide rolls of paper (or other flexible materials) into narrower rolls. It combines two essential functions: slitting for precision cutting of the web into multiple strips, and rewinding for neatly winding the slit strips onto smaller cores for easy handling, shipping, or further processing. These machines are used across industries, including paper mills, printing houses, packaging companies, and converters. In the competitive world of paper manufacturing, printing, and packaging, efficiency and precision are non-negotiable. The paper slitting rewinding machine is a critical machine that transforms large paper rolls into smaller, customer-ready formats while ensuring flawless quality.

paper slitter rewinder
paper slitter rewinder
paper roll slitting rewinding machine
paper roll slitting rewinding machine

Parameters of Paper Slitter Rewinder

ModelYG-1100AYG-1300AYG-1600AYG-1800A
Max. Unwinding width1100mm1300mm1600mm1800mm
Max. Unwinding diameter1400mm1400mm1400mm1400mm
Max. Rewinder diameter1000mm1000mm1000mm1000mm
Min. Rewinder web width50mm30mm30mm30mm
Slitting speed10-350 m/min30-500m/min30-500m/min30-500m/min
Precision of slitting±0.2mm±0.2mm±0.2mm±0.2mm
Slitting thickness20-200g (paper) 15-500g/m²15-500g/m²15-500g/m²
Total power25kw26kw26kw38kw
Machine weight5600kg4500kg5200kg6000kg
Overall dimension4200*3200*1950mm4500*2800*1950mm4500*3200*1950mm4500*3800*1950mm

Free Quote

Features of Our Paper Slitting Rewinding Machine

Precision Slitting System: Sharp rotary or razor blades ensure accurate and clean cuts.

High-Speed Operation: Capable of running at speeds up to 500 m/min or more for high-volume output.

Automatic Tension Control: Guarantees uniform tension for both unwinding and rewinding sections.

User-Friendly Interface: Touchscreen controls for easy setup, monitoring, and troubleshooting.

Adjustable Slit Widths: Flexibility to produce various roll sizes for different applications.

Heavy-Duty Structure: Built with high-grade steel for long-term stability and low vibration.

paper roll slitter rewinder
paper roll slitter rewinder
paper slitting rewinding machine
paper slitting rewinding machine

Free Quote

Applications of Paper Slitting and Rewinding Machine

Our paper slitter rewinders are suitable for a wide range of materials and applications, including:

Printing and Packaging: Prepare narrow rolls for label and flexible packaging production.

Paper Mills: Cut wide paper rolls into manageable rolls for distribution.

Stationery Manufacturing: Produce paper rolls for notebooks, notepads, and other paper goods.

kraft paper roll slitting equipment
kraft paper roll slitting equipment
kraft paper slitting machine for sale
kraft paper slitting machine for sale
