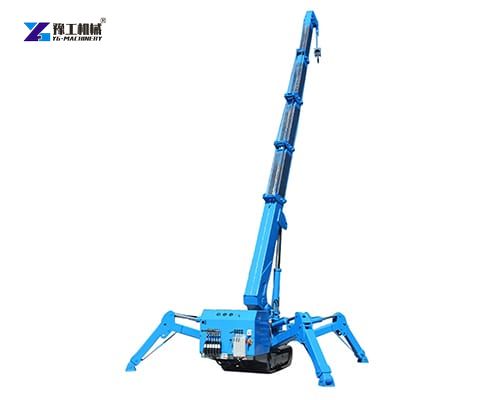

Mini spider crane is a compact, lightweight crawler crane characterized by its multiple outriggers that resemble the legs of a spider to distribute weight evenly. This design ensures safety and balance even when lifting heavy loads in tight spaces. It can provide exceptional stability on uneven terrain while maintaining a small footprint, making it ideal for indoor and outdoor projects where traditional cranes cannot operate. Typically weighing between 3 to 10 tons, these cranes combine portability with impressive load capacities, offering versatility for tasks ranging from material handling to equipment installation.
Parameters of Mini Spider Crane
| Model | YG-3T | YG-5T | YG-8T |
| Maximum operating radius | 8.83m×0.2t | 14m×0.5t | 16.5m*0.5t |
| Maximum ground lift | 9.2m | 16.8m | 18m |
| Hook rising speed | 0-8m/min (4 ropes） | 12m/min (4 ropes） | 12m/min (4 ropes） |
| Wire rope specifications | φ8mm×45m | φ11mm×80m | φ11mm×80m |
| Telescopic arm form | 5-section boom, U-shaped structure | 5-section boom, U-shaped structure | 5-section boom, U-shaped structure |
| Telescopic arm length/time | 3.1m-9.2m/20sec | 4.7m-16.5m/54sec | 4.7m-16.5m/54sec |
| Boom angle/time | 0-78°/13sec | 0-78°/13sec | 0-78°/13sec |
| Rotation angle/speed | 0-360°（continuous）/60sec | 0-360°（continuous）/38sec | 0-360°（continuous）/38sec |
| Overall size | 2.98*0.8*1.5m | 5*1.5*1.9m | 5*1.6*2.18m |
| Deadweight | 2700kg | 6200kg | 7200kg |
Diverse Applications of Mini Spider Cranes
Construction: In the construction industry, small spider cranes are invaluable for lifting glass panels, steel beams, and other materials in tight urban environments or on multi-story buildings where access is limited.
Maintenance and Installation: For maintenance tasks in factories, power plants, and other industrial facilities, crawler spider cranes can lift and position heavy equipment with precision. They are also ideal for installing HVAC systems, machinery, and other components in confined spaces.
Steel Erection: Despite their size, some small spider cranes possess sufficient lifting capacity for certain steel erection tasks, particularly in confined areas where larger cranes cannot operate.
Landscaping and Tree Care: It can be used in landscaping for lifting and placing large trees, stones, and other heavy elements. Their maneuverability allows them to work in gardens and other restricted outdoor spaces.
Art and Sculpture Installation: The precise control offered by mini spider cranes makes them suitable for the delicate task of installing large and heavy art installations and sculptures, both indoors and outdoors.
Benefits of Investing in a Crawler Spider Crane
- Cost Efficiency
Reduced Labor Costs: A single operator can manage lifting tasks that would otherwise require a team.
Faster Project Completion: Maneuverability speeds up workflows, cutting down on downtime.
Lower Maintenance: Compared to larger cranes, mini spider cranes have fewer moving parts and simpler maintenance routines. - Enhanced Safety
By minimizing manual handling and providing stable lifting platforms. Remote operation also keeps workers at a safe distance from heavy loads. - Versatility Across Sectors
The same crane can be used for construction, events, and landscaping, offering a high return on investment for rental companies or multi-industry businesses.
How to Choose the Right Small Spider Crane?
Selecting the right model depends on your specific needs. Consider these factors:
- Lifting Capacity
Match the crane’s maximum load to your heaviest typical task. Overloading risks safety and equipment damage. - Terrain and Environment
Indoor Use: Opt for electric models with rubber tracks to protect floors.
Outdoor Use: Choose diesel or hybrid engines with robust outriggers for uneven ground. - Boom Length and Reach
Longer booms provide greater reach but may reduce lifting capacity. Evaluate the balance between height and load requirements. - Portability
If you need to transport the crane frequently, check its weight and compatibility with standard trailers or vans.
