Skid Steer Front Loader

Skid steer front loader is a compact, engine-powered machine primarily characterized by its unique steering mechanism and its front-mounted lift arms, to which various attachments, including loader buckets, can be fitted. The “skid steer” name derives from how it turns: the wheels or tracks on each side of the machine are locked in synchronization and can be operated independently of the other side. To turn, the operator increases the speed of the wheels on one side while slowing, stopping, or reversing the wheels on the other side. This causes the wheels to drag or “skid” across the ground as the machine pivots within its own footprint, resulting in exceptional zero turn maneuverability.

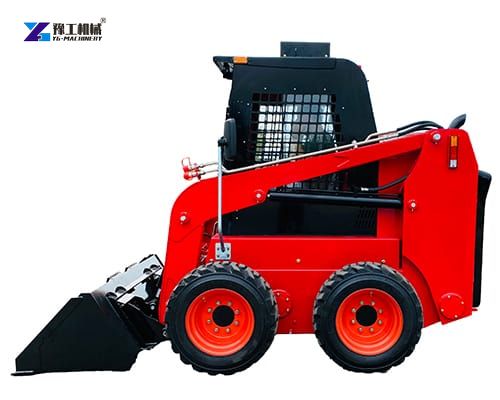

skid steer front loader
skid steer front loader
small skid steer for sale
small skid steer for sale

Free Quote

Skid Steer Front Loader Specifications

ModelYGW45YGW65YGT50YGT65
Operating load (kg)70010507001000
Max Speed(km/h)10101012
Rated flux (L/min)80898089
Rated power (kw)36.7554555
Fuel tank capacity (L)70755090
Self-weight bucket (kg)3766449840745024
Bucket capacity (m³)0.40.50.40.5
Overall operating height (mm)3560385036603900
Height to bucket hinge pin (mm)2765302027302970
Height to top of cab (mm)2230229523492409
Height to bottom of level bucket(mm)2909286225002790
Without bucket length(mm)2325252721702450
Overall length with bucket(mm)3276342831503400
Dumping angle at maximum height(° )37.5324040
Dumping height(mm)2342241019902270
Dumping reach(mm)55085010401120
Rollback of bucket on ground(° )20.5233030
Rollback of bucket at full height(° )96.595100100
Wheelbase(mm)991107412301500
Ground clearance(mm)185205230200
Angle of departure(° )202018.518.5
Front turning radius without bucket(mm)11881320.510641230
Front tuning radius(mm)2030209518252010
Rear tuning radius(mm)1630168012641720
Rear axle to bumper (mm)9291057590730
Tread width (mm)1462.5149810221482
Width (mm)1726.5180514221782
Bucket width (mm)1727182817271828

Free Quote

Features Of A Skid Steer Front Loader

Compact Design
The skid steer loader’s small footprint allows it to operate in confined areas where larger machinery cannot. This makes it perfect for urban construction sites, indoor projects, or narrow rural pathways.

High Power-To-Size Ratio
Despite their size, modern skid steer loaders pack significant horsepower. Advanced hydraulic systems deliver robust lifting capacities, enabling them to handle heavy materials effortlessly.

Durable Construction
Built with reinforced steel frames, heavy-duty tires, and protective components, these machines are designed to withstand harsh conditions.

Operator Comfort And Safety
Modern models prioritize operator comfort with ergonomic controls, adjustable seats, and climate-controlled cabs. Safety features include seatbelts, backup cameras, and automatic shutdown systems.

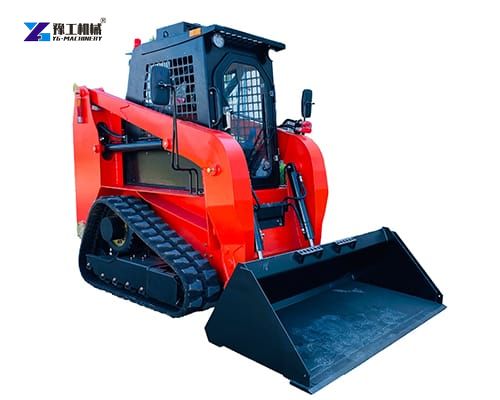

YGT50 crawler loader for sale
YGT50 crawler loader for sale

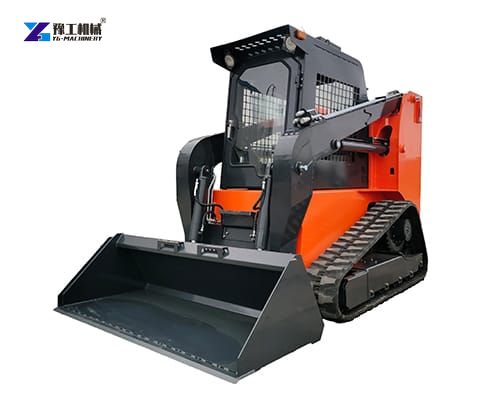

YGT65 crawler loader for sale
YGT65 crawler loader for sale

Free Quote

Applications Of Skid Steer Front Loaders

Construction
From digging foundations to moving debris, skid steer front loaders are vital on construction sites. Attachments like breakers or compactors further extend their utility.

Landscaping
Landscapers use these loaders for grading, trenching, tree planting, and transporting mulch or soil. A brush cutter attachment can clear overgrown areas quickly.

Agriculture
Farmers rely on skid steers for feeding livestock, cleaning barns, lifting hay bales, and maintaining fields. Pallet forks and bale spears are popular agricultural attachments.

Snow Removal
Equipped with snow blades or blowers, skid steer front loaders efficiently clear parking lots, sidewalks, and driveways during winter months.

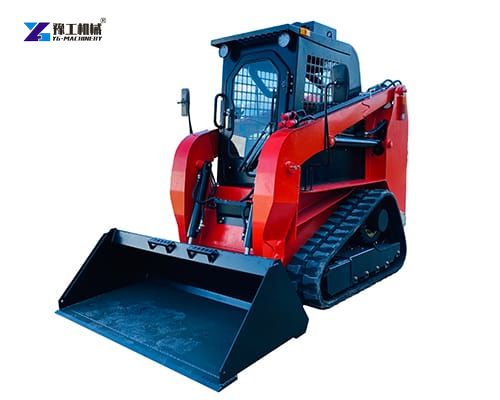

crawler loader for sale
crawler loader for sale

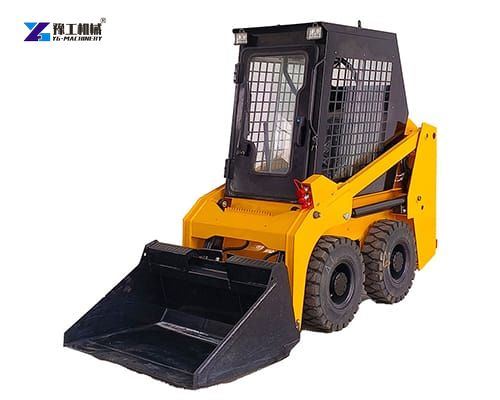

wheeled skid steer loader
wheeled skid steer loader

Free Quote

Advantages of Using a Front Loader Skid Steer

Increased Productivity and Versatility
The combination of compact size, power, and attachment flexibility allows a front loader skid steer to perform multiple tasks without the need for separate machines.

Reduced Labor
By replacing manual labor with mechanized digging and lifting, companies can complete projects faster and with fewer workers.

Adaptability Across Industries
Skid steer front loaders see widespread use in construction, agriculture, landscaping, forestry, snow removal, demolition, recycling, and industrial settings.

Enhanced Job Site Safety
Safer operation comes from the machine’s stability, enclosed cab, and clear sightlines.

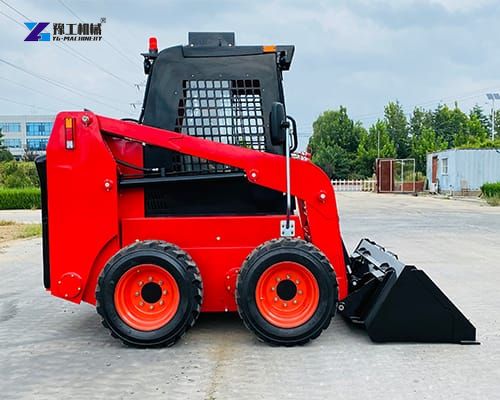

wheeled small skid steer loader
wheeled small skid steer loader
YG mini tracked skid steer for sale
YG mini tracked skid steer for sale
