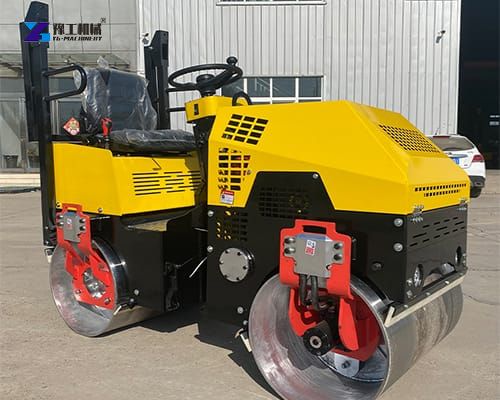

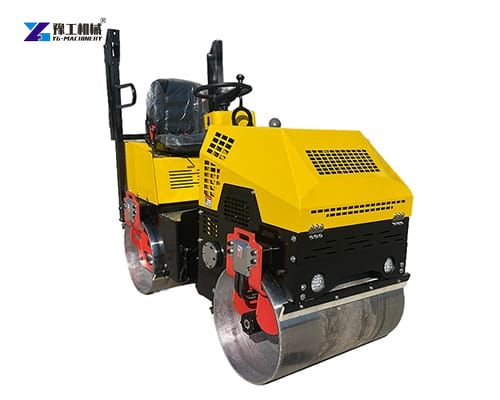

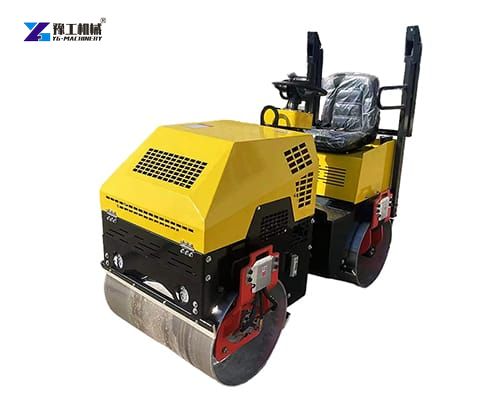

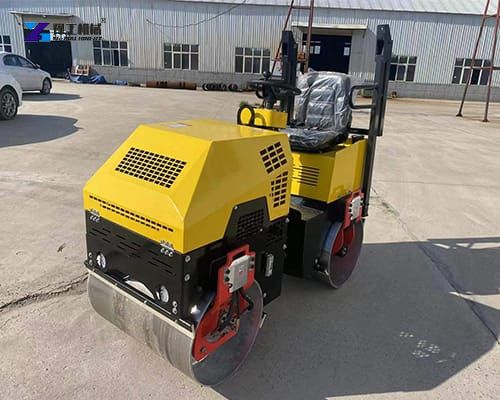

Small road roller, also known as a compact roller or mini roller, is a specialized piece of construction equipment used primarily for compacting soil, gravel, asphalt, and other materials. Unlike larger rollers, which are typically used on highways and major infrastructure projects, small road rollers are engineered for more nimble operations. They are characterized by their compact dimensions, lighter weight, and often, their ability to operate in tight spaces. Small road rollers generally come equipped with a roller drum, which is either smooth or textured depending on the application. The drum is rotated by a hydraulic or mechanical system, applying the necessary pressure to consolidate the underlying material. This process enhances the stability, density, and smoothness of the pavement, ensuring a durable and long-lasting surface.
Small Road Roller Parameters
| Model | YG-600S | YG-880 | YG-850 | YG-880 |
| Power | 5.5HP | 25HP/20HP | 6.0HP | 25HP/20HP |
| Walk Speed | 2.4km/h | 0-5KM/H | 0-4km/h | 0-5KM/H |
| Climbing Capacity | 25% | 30% | 30% | 30% |
| Static Linear Load | 45n/cm | 45n/cm | 45n/cm | 45n/cm |
| Exciting Force | 20KN | 50KN | 20KN | 50KN |
| Vibration Frequency | 70HZ | 70HZ | 70HZ | 70HZ |
| Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive | Hydraulic Drive |
| Water Tank | 15L | 15L | 15L | 15L |
| Hydraulic Oil Tank | 3.6L | 19L | 3.6L | 19L |
| Engine Model | HONDA GX160 | GX390 | HONDA GX270 | GX390 |
| Steel Wheel Size | 426x600mm | 800x850mm | 580x700mm | 800x850mm |
| Package Size | 1050x900x1200mm | 2100*1000*1650 mm | 1550x900x1200mm | 2100*1000*1650 mm |
| Weight | 330kg | 1000kg | 750kg | 1000kg |
Features of Small Road Roller
- Compact Design: Their small footprint allows them to operate in tight spaces, making them ideal for narrow roads, urban areas, and small construction sites.
- Adjustable Compaction Force: Many models offer adjustable weights and vibration settings, allowing operators to tailor the compaction force to the specific material and application.
- Articulated Steering: Articulated steering systems provide excellent maneuverability, enabling the roller to navigate around obstacles and tight corners with ease.
- Hydraulic Systems: Hydraulic systems power the drum rotation and often the steering, ensuring smooth and consistent operation.
- Operator Comfort: Features such as ergonomic seating, adjustable controls, and vibration-damping systems enhance operator comfort and productivity.
- Durability: Constructed from high-strength materials, small road rollers are designed to withstand the rigors of daily use and maintain their performance over time.
Benefits of Using Mini Road Rollers
- Increased Efficiency: The compact size and maneuverability of small road rollers enable faster and more efficient compaction in confined spaces, reducing the overall time required for construction projects.
- Cost-Effective: Smaller machines typically have lower purchase and operational costs compared to larger rollers. This makes them a cost-effective solution for small-scale projects and budgets.
- Versatility: The availability of different drum types and power sources allows small road rollers to be used across a wide range of applications, from soil compaction to asphalt finishing.
- Improved Quality: The precision and control offered by small road rollers result in higher-quality compaction, leading to more durable and longer-lasting pavements.
- Environmental Benefits: Electric models reduce noise pollution and emissions, making them more environmentally friendly than traditional diesel-powered equipment.
