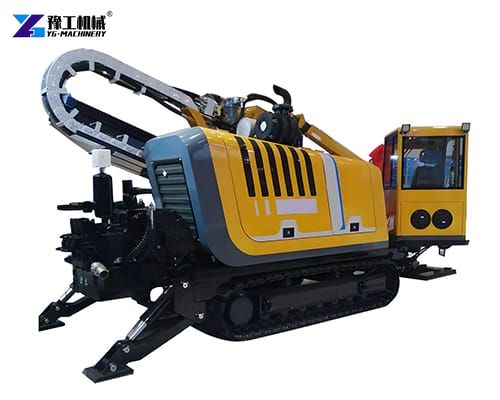

Horizontal Directional Drilling Rig

Horizontal directional drilling rig, often abbreviated as HDD rig, is a specialized machine used to install underground utilities along a pre-determined bore path using a trenchless method. It enables the installation of underground utilities with minimal surface disruption. HDD rigs allow operators to drill horizontally beneath obstacles such as roads, rivers, and existing infrastructure. This technology has become indispensable in industries ranging from telecommunications and oil/gas pipelines to municipal water systems and power distribution networks.

Horizontal Directional Drilling Rig Specifications

Model	YG-50LS	YG-130LS	YG-150LS	YG-200LS
Weight	3650kg	4750kg	4700kg	8800kg
Max. Thrust & Pullback Force	51kN	135kN	150kN	205kN
Max. Torque	2235N·m	4500N·m	4500N·m	6500N·m
Engine Power	43kw	93kw	93kw	113kw
Walking Speed	2.5km/h	2.5-4.5km/h	2.5-4.5km/h	2.5-4km/h
Entry Angle	14°-17°	12°-22°	12°-22°	12°-22°
Drill Rod Size	φ42*1800mm	φ50/φ60*3000mm	φ60*2000mm	φ60*3000mm
Suggest Reaming Diameter	≤φ400mm	≤φ700mm	≤φ700mm	≤φ800mm
Dimension(L*W*H)	3870*1300*1470mm	5470*1670*2040mm	4200*1700*2140mm	6750*2050*2400mm
Max. Thrust & Pullback Speed	61m/min	36m/min	46m/min	60m/min
Max. Rotation Speed	215r/min	193r/min	193r/min	230r/min
Max. Mud Flow	75L/min	200L/min	180L/min	250L/min
Max. Mud Pressure	6Mpa	8Mpa	8Mpa	8Mpa
Max. Climbing Gradient	17°	16°	17°	17°
Drill Rod Box Capacity	44pcs(4*11)	48pcs(4*12)	56pcs(4*14)	48pcs(4*12)
Suggest Crossing Length	≤100m	≤200m	≤200m	≤300m

Free Quote

Key Components of HDD Machine

1. Power Plant
   Most HDD rigs use diesel engines or electric motors to generate hydraulic power. Larger rigs may employ dual-engine configurations for high-torque applications.
2. Rotary System
   The rotary drive provides rotational force to the drill string. Advanced models feature variable-speed controls and torque-limiting mechanisms to prevent overloading.
3. Thrust/Pullback System
   This mechanism applies force to advance or retract the drill string. High-capacity rigs can exert thousands of pounds of thrust, enabling installations through hard rock formations.
4. Drill Pipe
   High-strength drill pipes transmit torque and thrust while housing fluid circulation channels. Threaded connections ensure rapid assembly/disassembly onsite.

Free Quote

Advantages of Horizontal Directional Drilling Rig

1. Environmental Preservation
   By eliminating extensive excavation, HDD minimizes soil erosion, habitat disruption, and deforestation. This makes it ideal for environmentally sensitive zones like wetlands and protected parklands.
2. Cost Efficiency
   While initial equipment costs are higher, HDD reduces long-term expenses through faster project completion, lower restoration costs, and reduced labor requirements.
3. Safety Enhancements
   Workers face fewer hazards compared to open trenches, where cave-ins and heavy machinery accidents are common risks.
4. Versatility
   HDD rigs adapt to diverse geologies—from clay and sand to fractured bedrock. Adjustable steering systems also enable complex bore profiles, including vertical curves and horizontal offsets.

Free Quote

Applications HDD Equipment for Sale

The versatility of horizontal directional drilling rig technology makes it suitable for a vast array of projects across multiple sectors

• Utility Installation: The primary application. Installing fiber optic cables, electrical conduits, telecommunications lines, water mains, sewer force mains, and gas distribution lines under roads, developments, and sensitive areas.
• Pipeline Crossings: Essential for oil and gas pipelines, water transmission lines, and chemical pipelines crossing beneath rivers, lakes, wetlands, highways, and railways. This is often the most economical and environmentally sound method.
• Environmental Remediation: Installing wells or conduits for groundwater monitoring or remediation systems beneath contaminated sites without disturbing the surface cap.
• Geothermal Systems: Placing ground source heat pump loops horizontally beneath large areas like parking lots or fields.
