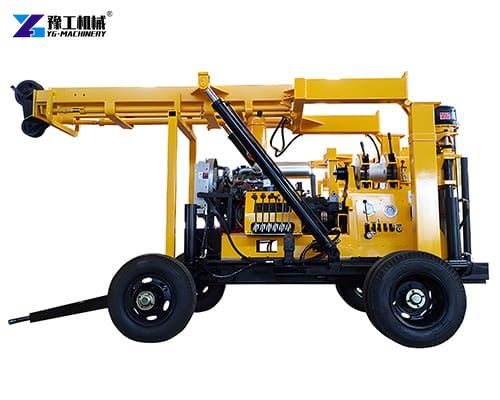

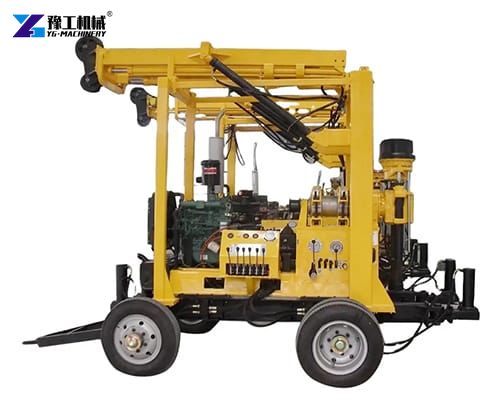

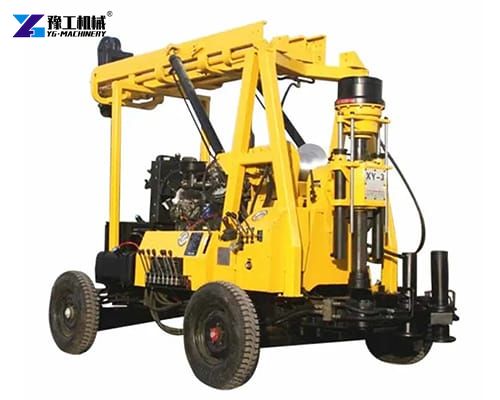

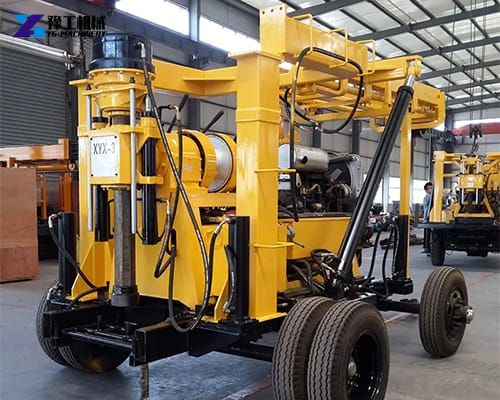

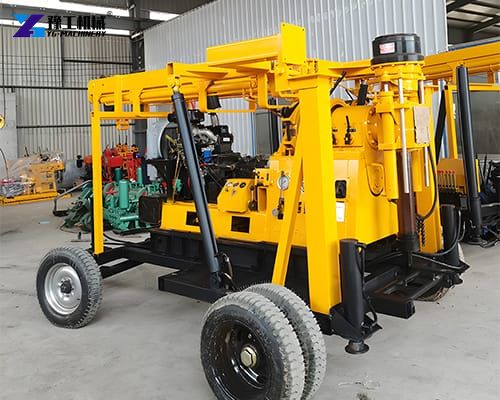

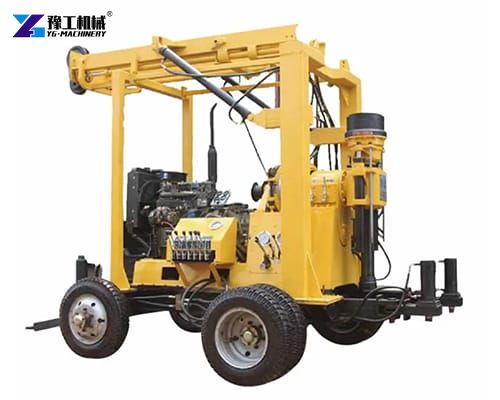

Core drilling machine for mining is a specialized tool designed to extract cylindrical samples of rock from the subsurface. These machines are integral to geological exploration and mining activities, as they allow for the collection of rock cores that can be analyzed to understand the geological makeup, rock types, and potential mineral deposits. The core drilling process involves rotating a drill string and bit, pushing them into the subsurface rock, and retrieving the rock core sample within an inner tube called the core barrel.
Parameters of Core Drilling Machine for Mining
| Model | YGX-400 | YGX-600 | YGX-800 | YGX-1000 |
| Drilling Depth(M) | 180-400-500 | 200-600-650 | 400-800-1000 | 500-1000-1100 |
| Rated pressure(MPA) | 21 | 21 | 25 | 28 |
| Rated Flow(L/min) | 168 | 192 | 260 | 300 |
| Heat Dissipation Mode | Air cooling+water cooling | |||
| Engine Brand | Yuchai | Yuchai | Yuchai | Cummins |
| Rated power/speed | 78kW/ 2400r/min | 92kW/ 2400r/min | 92kW/ 2400r/min | 154kW/2400r/min |
| Drilling Angle(°) | 0-90 | 45-90 | 45-90 | 45-90 |
| Lifting Force(T) | 12 | 16 | 24 | 30 |
| Feed Force(T) | 6 | 8 | 12 | 15 |
| Hydraulic Mud pump flow | 30-90（L/min） | 30-90（L/min） | 90-180（L/min） | 90-180（L/min） |
| Hydraulic Mud pump power | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) | 4-7(MPA) |
| Dimension | 4000*1900*1800mm | 4000*2000*1800mm | 5500*2100*2000mm | 6000*2200*2400mm |
| Weight | 4.3T | 4.5/5.5T | 6.5T | 7.5T |
Basic Structure and Components
- Rotary Head (or Rotary Table): The rotary head is the heart of the drilling machine, responsible for rotating the drill string and bit. It provides the torque necessary to cut through the rock.
- Feed Mechanism: The feed mechanism controls the axial load on the drill bit and advances the drill string as drilling progresses. It ensures continuous drilling by maintaining the appropriate pressure on the bit.
- Hoisting Mechanism: The hoisting mechanism is used to raise and lower the drill string and core samples. It is crucial for retrieving the core samples once drilling is completed.
- Transmission System: The transmission system transfers power from the power source to the various working parts of the drilling machine. It can be mechanical, semi-hydraulic, or fully hydraulic.
- Control and Operating Devices: These devices allow the operator to control the drilling process, adjust parameters, and monitor machine performance. They are essential for safe and efficient drilling operations.
- Chassis and Support Structure: The chassis and support structure provide a stable base for the drilling machine, ensuring it remains in position during drilling.
Applications of Core Drilling Machine for Mining
Core drilling machines for mining have a wide range of applications, spanning geological exploration, mineral resource development, water well drilling, and more. Here are some key applications:
- Geological Exploration: Core drilling machines are essential in geological exploration, as they allow for the collection of rock core samples that provide insights into geological structures, rock types, and mineral distributions. These samples are crucial for understanding the subsurface geology and identifying potential mineral deposits.
- Mineral Resource Development: In mineral resource development, core drilling machines are used for mineral exploration, pre-mining geological surveys, and mineral reserve assessments. They enable experts to collect direct samples of underground mineral deposits, providing valuable data for sustainable mineral resource development.
- Water Well Drilling: Core drilling machines are also used in water well drilling, where they can drill deep into the subsurface to reach underground aquifers. This process provides access to groundwater resources, which are essential for drinking water supply, irrigation, and industrial use.
- Engineering Geological Surveys: In engineering geological surveys, core drilling machines are used to collect rock core samples for analyzing the geological conditions of a site. This information is crucial for designing and constructing safe and stable structures, such as buildings, bridges, and tunnels.
- Environmental Monitoring: Core drilling machines play a role in environmental monitoring by allowing for the collection of underground soil and groundwater samples. These samples can be analyzed for contaminants and other pollutants, providing data for environmental protection and governance.
