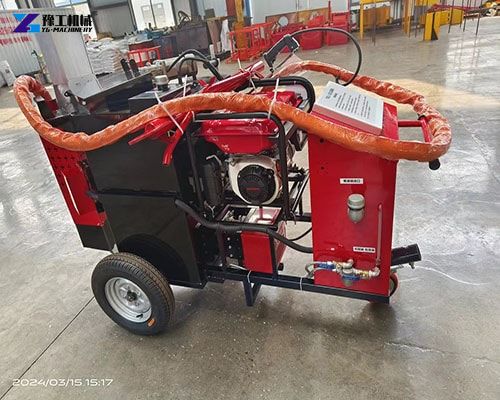

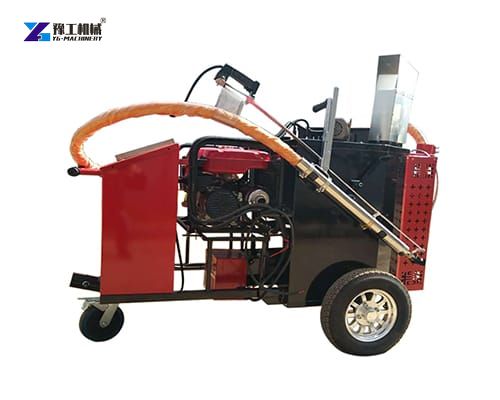

Asphalt crack sealer machine is a specialized piece of equipment designed to fill hot-pour crack sealant into asphalt cracks. These machines vary in size, capacity, and functionality, but they all share a common goal: to deliver precise, efficient, and long-lasting crack repairs. Modern machines are engineered for user-friendliness, safety, and adaptability to different job site conditions.
Why Is the Crack Sealing Machine Important?
Asphalt surfaces are prone to cracking due to environmental factors like temperature fluctuations, moisture infiltration, and heavy traffic. Left unaddressed, these cracks expand, leading to potholes, structural damage, and costly repairs. An asphalt crack sealer machine addresses this issue by filling cracks with hot-pour sealants or cold-applied materials, creating a waterproof barrier that prevents water and debris from compromising the pavement’s integrity. These machines streamline the crack sealing process, ensuring precision and consistency compared to manual methods. They are widely used in road maintenance, airport runways, industrial facilities, and residential properties, making them indispensable for preserving asphalt investments.
Parameters of Asphalt Crack Sealer Machine
| Model | YG-100 | YG-200 | YG-350 |
| Filling Capacity | 100L | 200L | 350L |
| Heating Time | 30min | 30-40min | 30-40min |
| Temperature Range | 0-200°C | 0-200°C | 0-230°C |
| Discharge Capacity | 0-12 L/min | 8L/min | 0-30 L/min |
| Generator | 2.3 kW | 2.8 KW | 5kw |
| Walking Mode | Manual or Traction | Manual or Traction | Trailer or Self |
| Burner | Riello 445T1 Diesel Engine | Riello 445T1 Diesel Engine | Riello 445T1 Diesel Engine |
| Thermostat Control | SLA-5000 Temperature Controller | SLA-5000 Temperature Controller | SLA-5000 Temperature Controller |
| Length of Electric Heating Tube | 4-5 m | 4-5 m | 6-7 m |
| Dimensions | 1350*1000*1900mm | 2400*1400*1700mm | 3500*1000*2000mm |
| Weight | 240kg | 860kg | 1000kg |
Benefits Of Using An Asphalt Crack Sealer Machine
Investing in an asphalt crack sealing machine offers numerous advantages over traditional repair methods:
Cost Savings
Proactive crack sealing prevents minor issues from escalating into major repairs, reducing long-term maintenance expenses.
Extended Pavement Lifespan
By blocking moisture and contaminants, sealants protect the asphalt base, delaying the need for resurfacing or reconstruction.
Enhanced Safety
Smooth, sealed surfaces minimize trip hazards and improve traction for vehicles and pedestrians.
How Does An Asphalt Crack Filling Machine Work?
The primary function of an asphalt crack sealer machine is to heat, transport, and apply sealant into cracks. The process involves three key stages:
Heating The Sealant
Most machines use a thermal system to melt solid sealant blocks or heat cold-applied compounds. The temperature is carefully controlled to maintain viscosity, ensuring the material flows smoothly into cracks without burning or degrading.
Pressurized Application
Once heated, the sealant is pumped through a hose and nozzle at high pressure. This pressure ensures the material penetrates deep into cracks, even for narrow cracks, creating a durable bond with the asphalt.
Surface Finishing
After filling the crack, excess sealant is smoothed using a squeegee or brush attachment, leaving a clean, level surface that blends seamlessly with the surrounding pavement.
Modern asphalt crack sealer machines often include advanced features like digital temperature controls, adjustable pressure settings, and ergonomic designs to enhance efficiency and operator safety.
