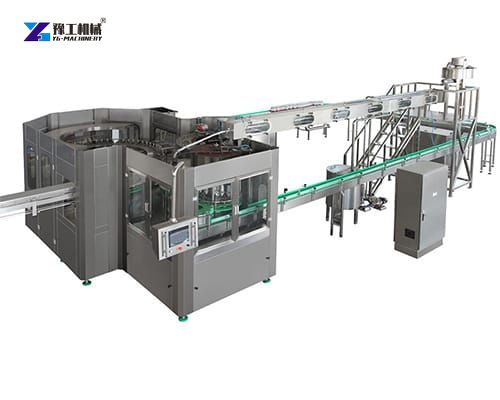

Fully automatic water bottle filling machine is a sophisticated piece of equipment designed to automate the entire process of filling empty bottles with liquid, sealing them, and preparing them for distribution. Unlike manual or semi-automatic systems, fully automatic machines require minimal human intervention, significantly enhancing productivity and reducing labor costs.
Fully Automatic Water Bottle Filling Machine Specifications
| Project Name: Fully Automatic Complete Mineral Water 1000-8000bph Production Line | PH≥4.6 Drinking water | |||
| Material | Shape | Filling volume(ml) | Filling level(mm) | Neck type |
| PET Bottle | Square or Round Bottle | 3000-10000ml | Distance from the bottleneck According to the request | As request |
| Adjustable specifications of the bottle type | Middle Mould Base: Bottle diameter ≤105mm, Bottle Height≤335mm | |||
| Customers need to buy additional change-over parts for the different bottles. If using square bottles, then a bottle-separating system will be added. | ||||
| Container Label & Control Mode | Packaging system | Palletizing system | ||
| Hot Melt Roll-Fed PVC Shrink Label Full Label/ Half Label Manual / Automatic | Packing system | Min. Spec. | Manual Low-position gantry palletizer Robot Palletizer High-position gantry palletizer Single Arm Palletizer Manual Palletizer | |
| Manual Film shrinker Wrap Around Packer Robot Packing Machine | 1*2 2*3 3*4 4*6 3*5 | |||
| User Ambient Conditions: | Temperature:10~40ºC; Humidity: No dew | |||
| User Electrical Supply Specification | Voltage:380V±5%, 3phase; Frequency:50HZ±1% | |||
Parts of Automatic Water Bottle Filling Machine
These machines typically consist of several integrated components, each playing a vital role in the filling process:
- Feeding System: This component handles the empty bottles, orienting them correctly and feeding them into the filling station.
- Filling Station: Here, the liquid is dispensed into each bottle through precise nozzles, controlled by advanced sensors to ensure consistent fill levels.
- Capping/Sealing Mechanism: Once filled, the bottles move to the capping or sealing station where caps or seals are applied securely.
- Labeling and Coding: The bottles then pass through a labeling station where labels with product information and branding are applied. Some machines also include coding stations for printing batch numbers, expiration dates, and other essential details.
- Inspection and Rejection System: Quality control is paramount, so fully automatic filling lines often incorporate inspection systems that detect any defects or inconsistencies. Bottles that fail inspection are automatically rejected.
- Packaging and Conveyance: Finally, the filled, sealed, and labeled bottles are conveyed to packaging bottle.
Features of Fully Automatic Water Bottle Filling Machine
When evaluating fully automatic water bottle filling machine, it’s crucial to understand their key features and how they contribute to overall efficiency and quality:
- High Speed and Productivity: Fully automatic machines are designed to operate at high speeds, significantly increasing output compared to manual or semi-automatic systems. This is especially beneficial for businesses seeking to scale up their production capacity.
- Precision Filling: Advanced sensors and metering systems ensure consistent fill levels, minimizing waste and ensuring compliance with industry standards.
- Versatility: Many fully automatic filling machines can be configured to handle different bottle sizes and shapes, allowing for flexible production lines.
- Ease of Operation and Maintenance: User-friendly interfaces and modular designs make these machines easy to operate and maintain. Quick-change parts and tool-less adjustments further simplify setup and changeovers.
