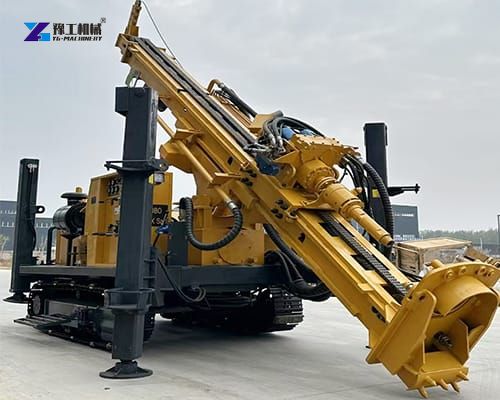

RC drilling rig, short for reverse circulation drilling rig, is a specialized machine designed to retrieve continuous rock samples from deep underground with minimal contamination. It is known for its efficiency, precision, and adaptability. This advanced drilling technology is a cornerstone in modern exploration projects. Reverse circulation drilling uses a dual-wall drill pipe system. The outer pipe stabilizes the borehole, while the inner pipe transports compressed air to the drill bit. As the bit cuts through rock formations, cuttings are forced upward through the inner pipe, ensuring rapid sample recovery and reduced cross-contamination.
Technical Data of RC Drilling Rig
| Model | YG150RC | |
| Drill rig weight(crawler mounted) | kg | 9000 |
| Engine Power | kW | 125 |
| Length × Width × Height (normal) | mm | 6750x2200x2950 |
| Ambient Temperature Range | °C | -10～38 |
| Drill Ability | ||
| Nominal Drill Depth | m | 150 |
| End-hole Diameter | mm | 110-250 |
| Drill angle | ° | -10-90 |
| Horizontal hole height | m | 1.85-2.8 |
| Drill head output | ||
| Max Output Torque | N.m | 8000 |
| Output Rotation Speed(continuity) | rpm | 30 / 60, 54/108rpm |
| Output Rotation Speed(interval) | rpm | 62 / 124105/210rpm |
| Feeding | mm | 3500 |
| Thrust Force | kN | 45 |
| Lifting Capacity | kN | 65 |
| Pipe-puller Device Output | ||
| Output Rotation Speed | rpm | 40 |
| Max Output Torque | N.m | 30000 |
| Hole-through Diameter | mm | 370 |
| Auxiliary Winch | ||
| Pull Force of the First Layer | kN | 11 |
| Rope Diameter | mm | 14 |
| Rope Capacity | m | 60 |
| Engine(Cummins) | 6BTA5.9-C125 | |
| Power | kW | 125 |
| Rotary Speed (Max.) | rpm | 2200 |
| Track Chassis Base | ||
| Walk Speed | Km/h | 1.2 |
| Unit Pressure | MPa | ＜0.05 |
| Climb Ability | ° | ≥20 |
Reverse Circulation Drilling Machine Advantages
RC drilling rig offers numerous benefits over traditional drilling methods like diamond core drilling or rotary air blast drilling. Below are the key advantages:
- Superior Sample Quality
The reverse circulation method ensures that samples remain uncontaminated during retrieval. Since cuttings are transported directly to the surface without contact with the borehole walls, geologists obtain accurate representations of subsurface geology. - Cost-Effectiveness
RC drilling is faster and requires less downtime compared to other techniques. Reduced labor costs, lower fuel consumption, and minimal site preparation. - Environmental Sustainability
The closed-loop system prevents drill cuttings from dispersing into the environment, making RC drilling ideal for ecologically sensitive areas—additionally, smaller footprints and reduced noise levels.
How Does the RC Drilling Rig Work?
At its core, the reverse circulation drilling machine operates on the principle of reverse air circulation. Unlike traditional drilling methods that rely on mud or fluid systems, RC drilling uses compressed air to power the drilling process. Here’s a breakdown of its operation:
Air Compression System: A high-pressure air compressor forces air down the inner tube of a dual-wall drill rod.
Hammer Activation: The compressed air drives a pneumatic hammer at the drill bit, shattering rock formations.
Cuttings Ejection: Rock fragments (cuttings) are propelled upward through the annular space between the inner and outer drill rods.
Sample Collection: A cyclone or splitter system separates the cuttings from the airflow, allowing geologists to analyze subsurface samples in real time.
This closed-loop system minimizes contamination and ensures rapid sample retrieval, making RC drilling ideal for exploratory projects requiring quick decision-making.
Applications of Reverse Circulation Drilling Rig
The versatility of RC drilling rig makes them suitable for a wide range of industries. Below are the primary applications:
- Mineral Exploration
RC drilling is the gold standard for mineral exploration, particularly for gold, copper, iron ore, and uranium. - Geotechnical Investigations
In civil engineering projects, RC rigs assess soil stability, bedrock depth, and groundwater conditions. This data is vital for constructing dams, tunnels, bridges, and high-rise buildings. - Water Well Drilling
RC technology efficiently drills deep water wells in arid regions. Its rapid penetration rates and clean boreholes ensure sustainable water access for communities and agriculture. - Environmental Monitoring
RC rigs install monitoring wells to track groundwater contamination or soil gas levels. The precision of sample collection aids in environmental impact assessments and remediation efforts. - Blast Hole Drilling
In mining operations, RC rigs prepare blast holes for explosives. Their speed and accuracy improve safety and productivity in open-pit mines.
