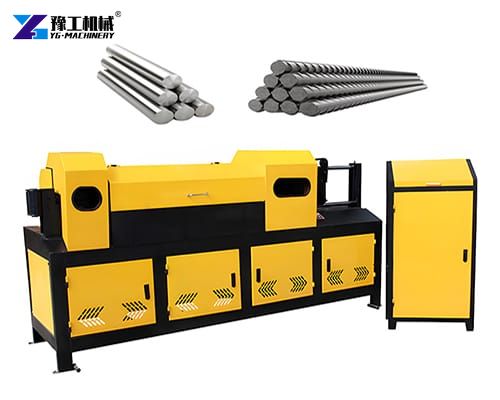

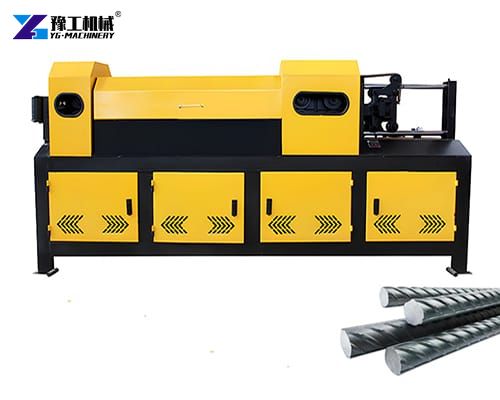

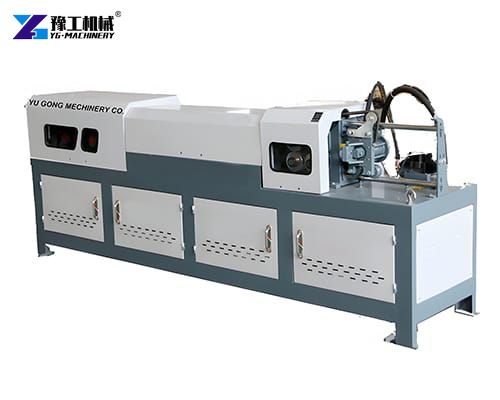

Rebar straightening cutting machine is a specialized piece of equipment designed to automate the process of straightening coiled or bent steel bars and cutting them to precise lengths. These machines are indispensable in large-scale projects like bridges, high-rises, and highways, where accuracy and speed are non-negotiable.
Rebar Straightening Cutting Machine Parameters
| Model | YGT4-14 | YGT5-16 |
| Diameter adjustment range | 4-14mm ( Ⅲ grade steel) | 5-16mm ( Ⅲ grade steel) |
| Wire pulling speed | 50m/min | 50m/min |
| Traction motor power | 2.2kw-6 | 2.2kw-6 |
| Modulation motor power | 7.5kw-4 | 15kw-4 |
| Cut off motor power | 5.5kw | 5.5kw-4 |
| Cutting error | ±0.5-1cm | ±0.5-1cm |
| Wire Length | 800-9000mm (can be lengthened) | 800-9000mm (can be lengthened) |
| straightening degree | ±2 mm/m | ±2 mm/m |
| Weight | 1500kg | 1500kg |
| Size | 2800*650*1200mm | 3300*650*1300mm |

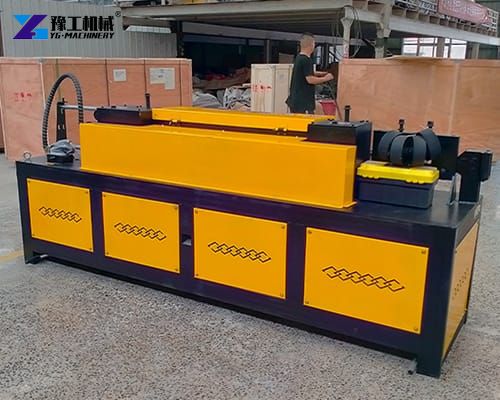

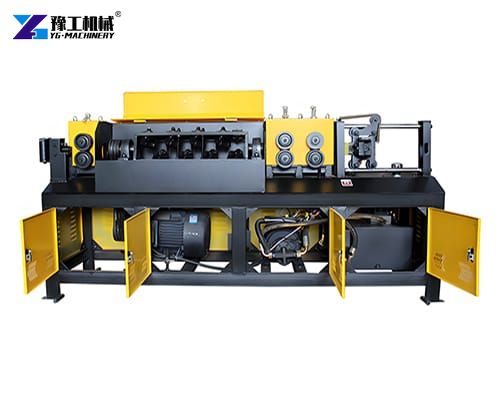

Main Components of Rebar Straightening Cutting Machine

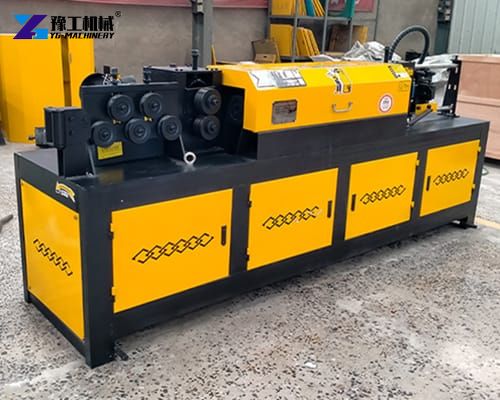

- Straightening Mechanism: Uses rollers or hydraulic systems to remove bends and twists.
- Cutting Unit: Equipped with high-strength blades or lasers for clean, burr-free cuts.
- Control Panel: Features programmable settings for length, quantity, and diameter adjustments.
- Feeding System: Automatically guides rebar through the machine for continuous operation.
How Does It Work?
- Coiled rebar is fed into the machine.
- Multiple rollers progressively straighten the bar.
- A measuring system determines the required length.
- The cutting unit severs the rebar with precision.
Why Invest in a Steel Bar Straightening Cutting Machine?
- Unmatched Precision
Manual cutting often leads to inconsistencies, jeopardizing structural integrity. Automated machines ensure cuts are accurate to within ±1 mm, adhering to strict engineering specifications. - Time and Labor Savings
For projects with tight deadlines, highly improving efficiency. - Enhanced Safety
Reduces worker exposure to sharp edges, heavy lifting, and repetitive motion injuries. - Cost Efficiency
Minimizes material waste through optimized cutting patterns. Over time, the ROI outweighs the initial investment. - Versatility
The rebar straightening cutting machine can handle rebar diameters from 4 mm to 14 mm, catering to diverse project needs.
