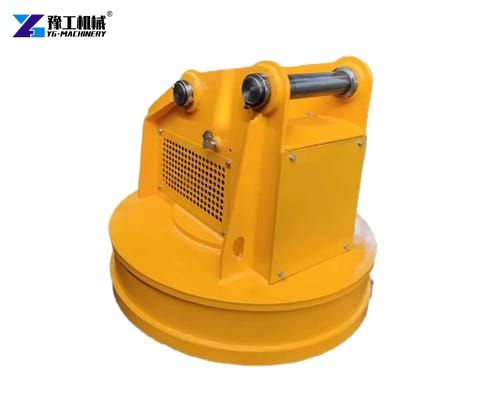

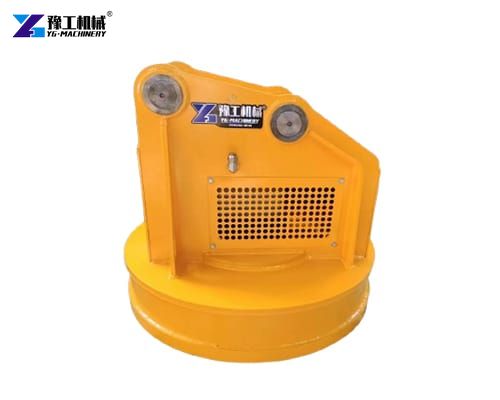

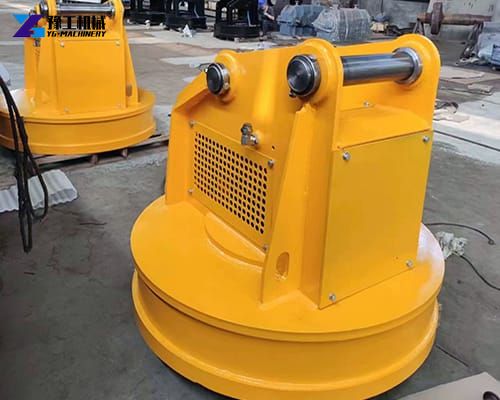

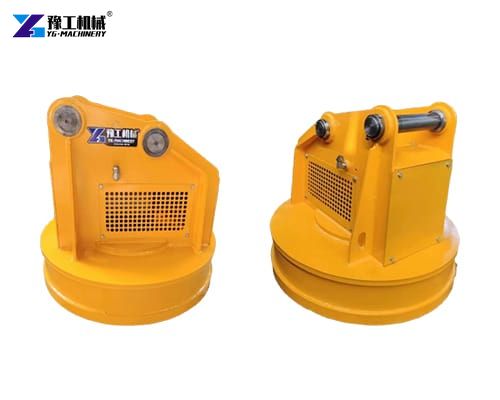

Hydraulic Magnet for Excavator

Hydraulic magnet for excavator is advanced device that combine the power of hydraulic with magnetic technology to create a versatile and powerful tool for material handling. These excavator magnet attachments are specifically designed to be mounted on excavators, leveraging the machine’s hydraulic system to control the magnetic force. The core of a hydraulic magnet lies in its electromagnetic design. When activated, an electric current passes through coils wound around a ferromagnetic core, generating a magnetic field. This field, when strong enough, can attract ferromagnetic materials such as iron, nickel, and cobalt. In the context of hydraulic magnets for excavators, this technology is harnessed to lift, move, and hold heavy metallic objects with ease.

Parameter of Excavator Hydraulic Magnet

Model	YGML02	YGML04	YGML06	YGML08	YGML10	YGML14	YGML20
Suitable excavator	4-6T	7-11T	12-16T	17-23T	24-30T	31-40T	41-50T
Weight	1400kg	1500kg	1890kg	2000kg	2200kg	2500kg	2800kg
Power	5kw	8kw	8kw	10kw	10kw	15kw	15kw
Outer diameter	700mm	800mm	900mm	1100mm	1200mm	1300mm	1400mm
Working flow	30-55 lpm	50-100 lpm	90-110 lpm	100-140 lpm	130-170 lpm	200-250 lpm	250-320 lpm
Working pressure	170 bar	180 bar	190 bar	200 bar	210 bar	250 bar	250 bar

Applications of Hydraulic Magnets for Excavator in Various Industries

Hydraulic magnet for excavator find widespread application across various industries, each demanding specific performance characteristics and reliability. Here are some notable applications:

1. Construction
   In the construction industry, hydraulic magnets are invaluable for tasks such as steel beam installation, reinforcement bar handling, and scrap metal removal. Their ability to quickly and securely attach to and detach from metallic objects streamlines construction processes and enhances safety.
2. Scrap Recycling
   Scrap yards and recycling plants often deal with large volumes of ferrous materials. Hydraulic magnets for excavators excel in these environments, allowing operators to efficiently sort, lift, and stack scrap metal. This not only increases productivity but also reduces manual handling, minimizing the risk of injuries.
3. Demolition
   During demolition projects, hydraulic magnets are used to separate reusable metallic components from the debris. This helps in recycling valuable materials and reducing landfill waste.
4. Mining
   In mining operations, especially those involving metallic ores, hydraulic magnet for excavator plays a crucial role in ore processing and waste rock separation. Their robust design and high magnetic strength make them ideal for handling heavy and abrasive materials.
5. Shipping and Ports
   Ports and shipping yards frequently handle large metallic cargoes such as containers, steel coils, and heavy machinery. Hydraulic magnets for excavators facilitate the loading and unloading of these items, ensuring efficient and safe operations.

Essential Considerations for Selection and Maintenance

• Magnetic Strength: The magnetic strength of a hydraulic magnet determines its lifting capacity. Choose a magnet with sufficient strength to handle the materials you typically work with.
• Compatibility with Excavator: Ensure the hydraulic magnet is compatible with your excavator’s make, model, and hydraulic system. This will prevent compatibility issues and ensure smooth operation.
• Operating Environment: Consider the specific conditions in which the magnet will operate. Factors such as temperature, humidity, and the presence of abrasive materials can affect magnet performance and longevity.

Related Machines

As a professional excavator attachments manufacturer, our company provides various excavator attachments with different specifications for different needs. For example, there are concrete pile breakers, car dismantling shears, excavator mounted pile drivers, excavator orange peel grapples, hydraulic quick hitchs for sale, hydraulic rippers for excavators, etc. If you need these machines, welcome to contact us freely.
