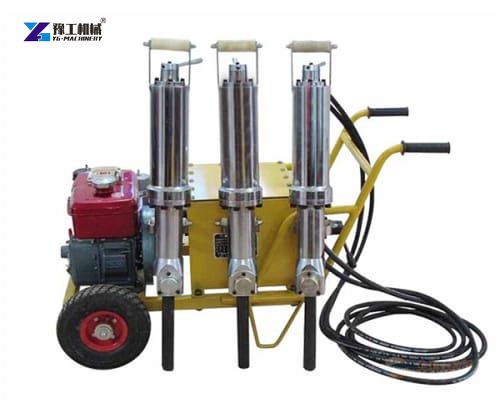

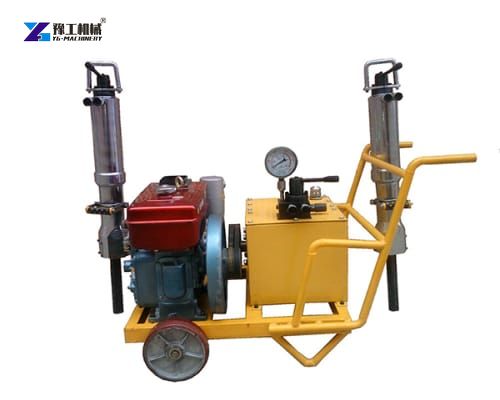

Rock splitter machine, also known as a hydraulic rock splitter or concrete splitter, is a hydraulic equipment engineered to fracture hard materials such as rock, concrete, or boulders through controlled force. It applies targeted pressure to create cracks along predetermined lines, minimizing collateral damage. The machine typically consists of a power unit, a hydraulic pump, and splitting components (wedges and feathers) that generate immense splitting force. The core principle relies on exerting outward force within a pre-drilled hole. A specialized steel wedge or set of pistons is inserted into the hole, and hydraulic fluid, pressurized by a power unit, forces the wedge or pistons to expand laterally.
Choosing the Appropriate Rock Splitter Machine
- Rock Hardness and Type
Soft rocks like sandstone may only require pneumatic splitters, while hard granite demands hydraulic models. Testing the rock’s compressive strength can guide your choice. - Power Source
Electric splitters suit indoor use, while diesel-powered hydraulic models are better for remote locations without electricity. - Splitting Force
Match this to the rock’s resistance to avoid being underpowered or overpowered by the machine.
How Does A Hydraulic Rock Splitter Work?
The operation of a rock splitter machine relies on basic physics principles. Here’s a step-by-step breakdown:
- Drilling: A hole is drilled into the rock using a diamond-tipped drill bit. The diameter and depth of the hole depend on the rock’s hardness and the desired split size.
- Insertion: The splitter’s wedge and plunger are inserted into the hole.
- Hydraulic Pressure: A hydraulic pump applies immense force to the wedge, expanding it and creating lateral stress on the rock.
- Fracturing: The rock splits cleanly along the path of least resistance, producing minimal debris and dust.
This method ensures precision, reduces waste, and eliminates the need for permits or safety zones required for blasting.
Applications of Rock Splitter for Concrete
Mining and Quarrying: In the mining and quarrying industries, rock splitters are used to extract valuable stones like granite and marble. The machine helps to reduce the need for blasting, making the process safer and more environmentally friendly.
Construction Projects: Rock splitter machines are used in construction sites where rocks need to be removed or broken to make way for new structures. They are especially useful in urban construction, where minimizing noise and vibration is essential.
Underground Construction: In underground construction projects, rock splitters are ideal for breaking hard rocks in confined spaces.
Demolition: Rock splitters are often employed in demolition projects, particularly when large concrete or stone structures need to be dismantled.
