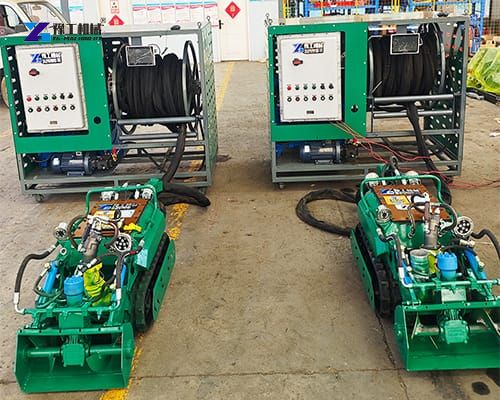

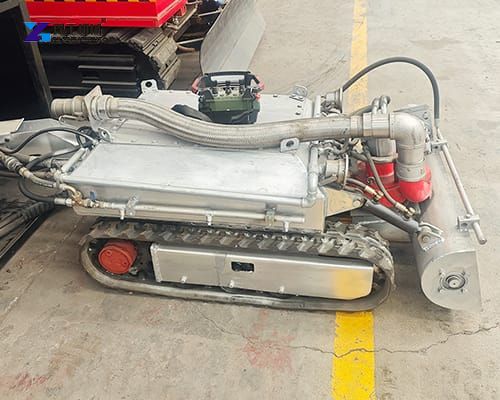

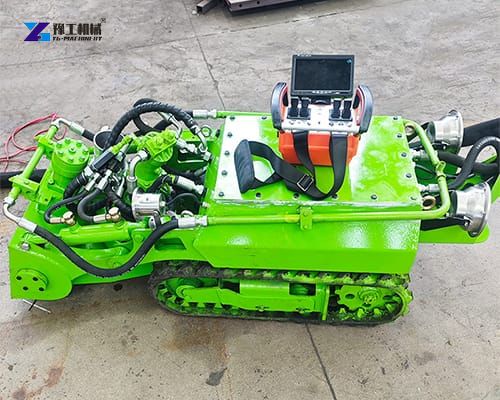

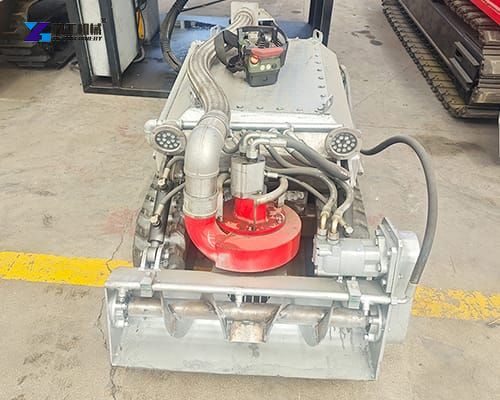

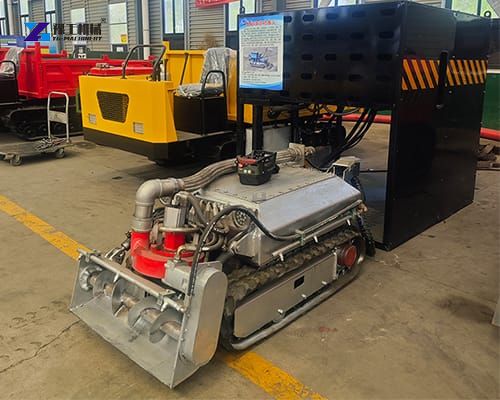

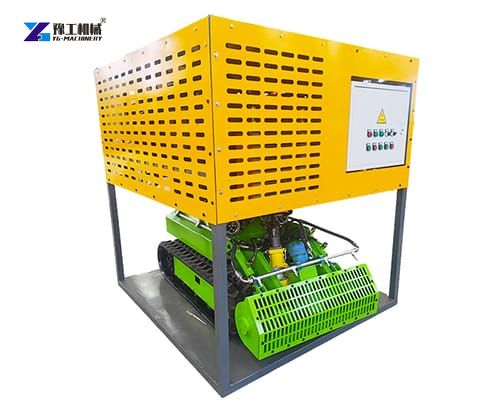

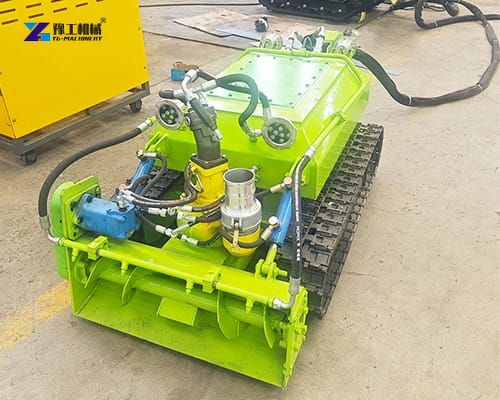

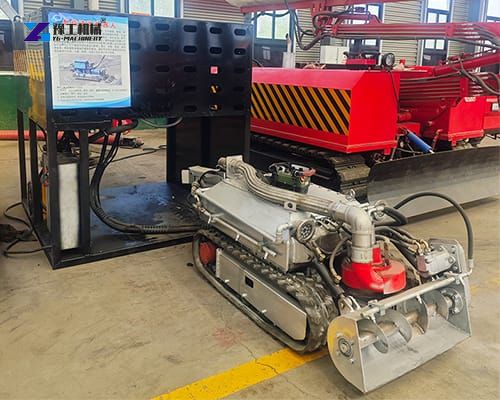

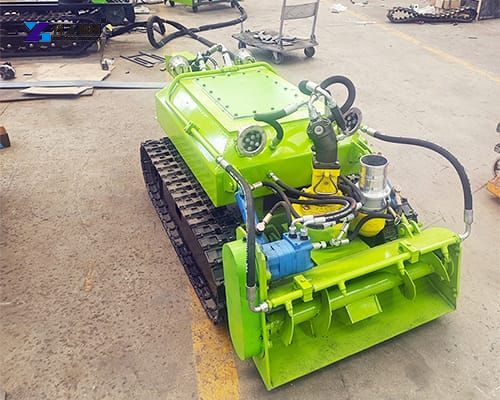

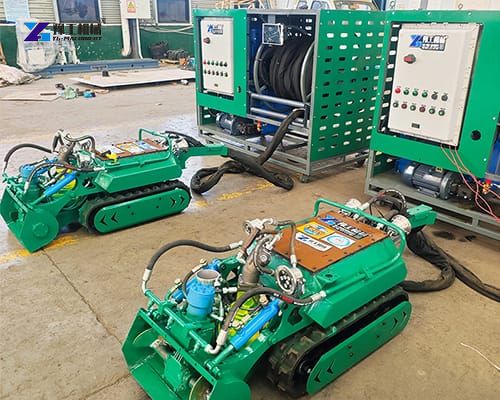

Industrial tank cleaning robot is a heavy-duty remote-operated machine designed to enter tanks and other restricted work areas to perform cleaning, dredging, sediment removal, or related maintenance tasks. Instead of relying entirely on workers inside the tank, the operator controls the robot from a safer position. The machine travels across the working surface, reaches accumulated material, and uses its cleaning and pumping system to loosen and remove waste. This design is particularly useful when the cleaning material is heavy, wet, sticky, or difficult to handle manually. It can also be valuable where the tank has limited access or where reducing human exposure is an important part of the site safety plan. The concept is simple, but its practical advantages are significant. A well-designed robot combines mobility, power, control, and material handling into one working platform. This allows users to approach cleaning as an engineered process rather than a labor-intensive manual task.
Used for underwater pumping of sludge Pumpable particle diameter: 40mm (can be changed according to customer needs) Lift: 25 meters (horizontal conveying distance 100-150 meters)
Used for underwater pumping of sludge Pumpable particle diameter: 40mm (can be changed according to customer needs) Lift: 25 meters (horizontal conveying distance 100-150 meters)
Used for underwater pumping of sludge Pumpable particle diameter: 40mm (can be changed according to customer needs) Lift: 25 meters (horizontal conveying distance 100-150 meters)
Used for underwater pumping of sludge Pumpable particle diameter: 40mm (can be changed according to customer needs) Vertical distance: 40 meters; horizontal conveying distance 150-200 meters
Underwater hydraulic power source
Waterproof hydraulic system
Waterproof hydraulic system
Waterproof hydraulic system
Waterproof hydraulic system
Robot main control cabin (underwater)
Used to control all actions of the robot, including the start and stop of underwater hydraulics and the lighting system.
Used to control all actions of the robot, including the start and stop of underwater hydraulics and the lighting system.
Used to control all actions of the robot, including the start and stop of underwater hydraulics and the lighting system.
Used to control all actions of the robot, including the start and stop of underwater hydraulics and the lighting system.

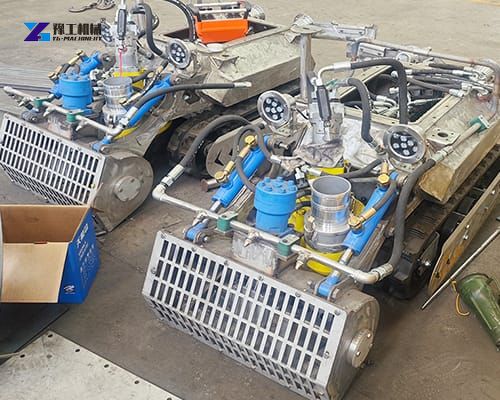

Underwater lighting system
2 LED lights
2 LED lights
2 LED lights
2 LED lights
Underwater camera system
Equipped with 1 underwater camera
Equipped with 1 underwater camera
Equipped with 1 underwater camera
Equipped with 1 underwater camera

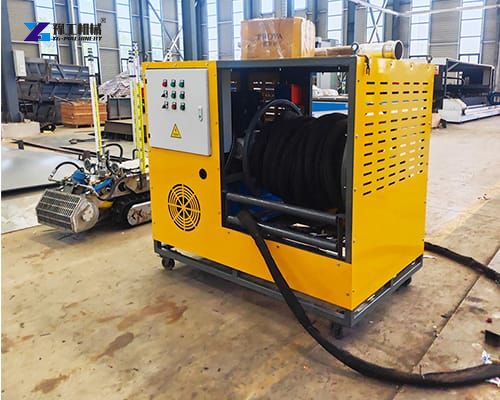

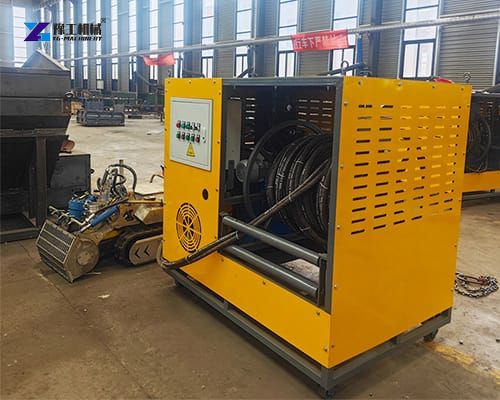

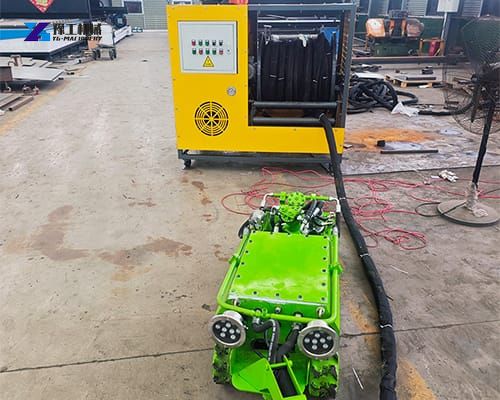

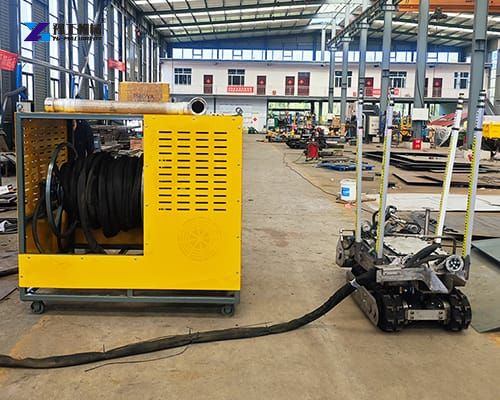

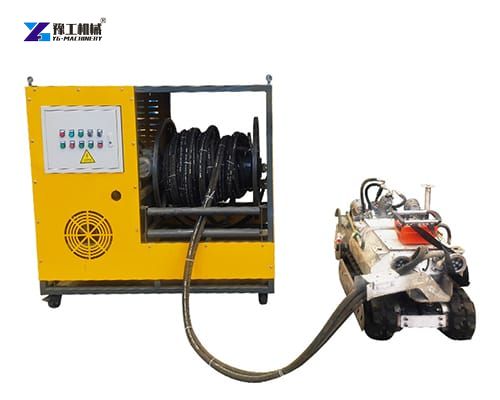

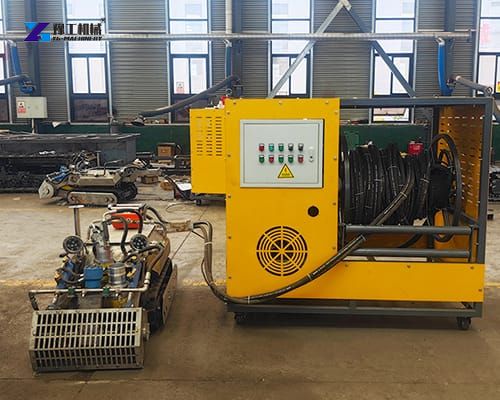

Cable winding system
Electric drive (or manual), speed 0-10r/min
Electric drive (or manual), speed 0-10r/min
Electric drive (or manual), speed 0-10r/min
Electric drive (or manual), speed 0-10r/min
Underwater pipeline
50 meters
50 meters
50 meters
50 meters
Ground electric control system
Main electric control cabinet
Used to power various ground systems.
Used to power various ground systems.
Used to power various ground systems.
Used to power various ground systems.
Main control console
Robot ground main control system, used to control the work of underwater robots
Robot ground main control system, used to control the work of underwater robots
Robot ground main control system, used to control the work of underwater robots
Robot ground main control system, used to control the work of underwater robots
Industrial tank cleaning is a demanding task for facilities that handle oil, sludge, wastewater, chemicals, sediment, or other difficult materials. Traditional cleaning methods can require extensive labor, long shutdown periods, water handling, and, in some environments, confined-space work. An industrial tank cleaning robot offers a different approach: operators control a compact, remotely operated machine while it works inside the tank or other difficult-to-access areas. By combining strong mobility, hydraulic cleaning power, pumping capability, and remote operation, the machine helps users remove accumulated material with less manual work and better process control. Its value is not simply that the machine is a robot. The real value is its ability to turn a difficult cleaning job into a more controlled, repeatable, and efficient maintenance process.
Industrial tanks rarely remain clean throughout their service life. Sediment, sludge, sand, oil residue, scale, biological deposits, and process waste can gradually collect on the tank floor and around other working areas. If this material is allowed to build up, it can reduce usable volume, interfere with pumps, affect product quality, and make inspection or maintenance more difficult.
The problem becomes more serious when a tank has a large internal area or contains material that is difficult to remove manually. A conventional cleaning team may need hoses, pumps, protective equipment, temporary access systems, and several workers. Depending on the site, cleaning may also require production stoppage and additional waste-handling procedures.
Robotic cleaning addresses these challenges by moving the cleaning operation from direct manual labor toward remote equipment operation. Industrial cleaning robots are increasingly used for tanks, lagoons, reservoirs, pits, and other confined environments because they can reduce personnel exposure while maintaining controlled cleaning performance.
Safety is one of the strongest reasons to consider an industrial tank cleaning robot. Industrial tanks can contain hazardous residues, poor air quality, slippery surfaces, limited visibility, or other conditions that make direct entry challenging. Removing the need for routine human entry can significantly reduce exposure to these conditions. Robotic systems are widely promoted for no-man-entry cleaning because they allow operators to perform work from outside the hazardous area. A safer cleaning process can influence labor requirements, site preparation, personal protective equipment, supervision, emergency planning, and overall project risk. For operators, remote control also provides a practical advantage. The person controlling the equipment can focus on movement, cleaning coverage, and material removal instead of physically working in sludge or contaminated areas.
An industrial tank cleaning robot must do more than move on a clean floor. Real industrial cleaning often involves soft sludge, uneven surfaces, sediment, water, and accumulated material.

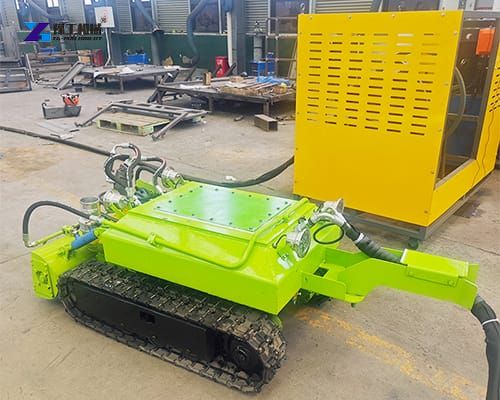

This is where a tracked or heavy-duty robotic platform can provide an advantage. Track-based movement offers stable contact with the working surface and helps the machine maintain traction when conditions become difficult. Instead of depending on a worker to carry equipment through the work area, the robot can travel directly to the material that needs to be removed.
Good mobility also improves cleaning efficiency. The operator can move the machine closer to heavy deposits, reposition it as the tank condition changes, and maintain a more practical working pattern.
For contractors, this flexibility is especially useful because different projects rarely have exactly the same cleaning conditions. A versatile platform can be used for tank floors, sludge pits, settling areas, wastewater facilities, and other industrial environments where conventional equipment may be difficult to position.
Cleaning performance depends heavily on the machine’s ability to handle the material being removed.
Light sediment may be easy to move, but aged sludge can become dense and difficult to transport. Oil residue, sand, mineral deposits, and mixed waste can also create a demanding working environment.
A hydraulic cleaning and pumping system gives the robot the ability to work with substantial material rather than simply washing the tank surface. The industrial tank cleaning robot can disturb accumulated deposits and move them toward the pumping process, helping convert a difficult manual task into a more continuous removal operation.
This is particularly important for tank owners who need to restore usable capacity. Removing sediment from the bottom of a tank is not simply a cosmetic cleaning task. Accumulated material can occupy valuable space and may complicate future inspection and maintenance.
For operators, the key consideration is matching the cleaning method to the residue. A robot should not be judged only by its movement speed. Its practical performance depends on how effectively it can loosen, collect, pump, and discharge the material under real working conditions.
Manual cleaning quality can vary from one worker to another. Fatigue, visibility, access, and working conditions can all affect the result.
A remotely operated industrial tank cleaning robot creates a more repeatable process. The operator can control movement and cleaning actions according to a planned working pattern, return to areas that need additional attention, and maintain better control over the equipment.
Automation does not mean the process becomes completely unattended. Human judgment remains important. Operators still need to understand the tank condition, residue type, cleaning sequence, and equipment behavior.
The difference is that the operator is controlling a machine rather than personally performing every physical cleaning action.
The industrial tank cleaning robot is not limited to one type of tank.
In oil and petroleum facilities, it can be used for sludge and sediment removal from storage tanks and related areas. Refineries and terminals commonly use robotic systems to reduce the need for personnel to enter hazardous tank environments.
In wastewater treatment, the same basic concept can be applied to sludge accumulation, settling areas, and difficult-to-access basins.
Chemical processing facilities can also benefit from remote cleaning where residues require careful handling. However, chemical compatibility and equipment certification must always be verified before operation.
Other potential applications include industrial reservoirs, sludge pits, process tanks, drainage areas, and maintenance projects where water, sediment, or heavy deposits need to be removed.
For a contractor, equipment utilization is a major part of return on investment.
A tank cleaning robot that can support multiple job types may be used across different industries and project conditions. This creates more opportunities to keep the equipment productive rather than leaving it dedicated to a single application.
The remote-control design is also useful for service companies because it can become part of a complete cleaning package. The contractor can combine the robot with pumps, hoses, waste transport, inspection equipment, and other site-specific tools.
This creates a more complete service model. Customers are not simply purchasing a industrial tank cleaning robot; they can receive a structured cleaning solution designed around safer operation and more efficient material removal.
Choosing the right industrial tank cleaning robot requires more than comparing headline specifications.
First, identify the type of material that normally accumulates in the tank. Thin sediment and heavy sludge may require very different cleaning strategies.
Second, examine the tank access conditions. The equipment must be capable of entering through the available opening and operating effectively within the tank’s internal geometry.
Third, consider the complete cleaning system rather than the robot alone. Pumping, discharge hoses, waste collection, water supply, power supply, and disposal arrangements can all affect project performance.
Finally, consider future applications. A machine that can support several cleaning tasks may provide greater long-term value than a highly specialized unit that is used only occasionally.
