Choosing the right milling head for your excavator is one of the most important decisions for improving productivity, reducing operating costs, and achieving high-quality excavation results. Whether you are working on road construction, trenching, tunneling, mining, demolition, or rock excavation, the attachment you select directly influences project efficiency and equipment performance. If you’re weighing a horizontal drum cutter versus a vertical drum cutter. The answer depends on several factors, including your working environment, the type of material being excavated, project requirements, available hydraulic power, and the level of precision you need. Here’s a concise, practical guide to help you decide which milling head attachment for excavator is better for your project.
Horizontal Drum Cutter
Horizontal drum cutter features two rotating drums mounted horizontally across the attachment body. The drums rotate toward each other, efficiently crushing and milling material between them.
This design creates a smooth excavation surface and enables controlled cutting across wider working areas.
Horizontal drum cutters are particularly suitable for:
- Tunnel profiling
- Trench excavation
- Concrete wall removal
- Rock excavation
- Surface milling
- Foundation work
- Road rehabilitation
Because the cutting width remains relatively constant, horizontal milling head attachment for excavator produce uniform excavation profiles with excellent precision.
How Does Horizontal Milling Head Attachment for Excavator Work?
Horizontal drum cutters rely on synchronized rotating drums equipped with tungsten carbide cutting picks.
As hydraulic motors rotate the drums, the cutting teeth continuously mill the target material into smaller particles.
Rather than generating heavy impact forces, the drums gradually remove material layer by layer.
This process provides several benefits:
- Reduced vibration
- Lower structural damage
- Improved operator control
- More accurate excavation
- Less noise
- Minimal flying debris
The excavated material is also easier to remove because it is crushed into manageable sizes during cutting.
Advantages of Horizontal Drum Cutters
High Productivity
Horizontal milling head attachment for excavator can process large work areas quickly, significantly increasing excavation efficiency. Their wide cutting width reduces the number of passes required to complete a job.
Excellent Surface Finish
Because both drums work simultaneously, horizontal cutters produce smooth and consistent excavation surfaces. This minimizes the need for secondary finishing operations.
Ideal for Tunnel Construction
Tunnel contractors frequently choose horizontal drum cutters because they can accurately profile tunnel walls and ceilings while minimizing vibration.
Reduced Structural Damage
The controlled milling action protects surrounding structures from excessive shock loads. This makes horizontal drum cutters ideal for projects near buildings or existing infrastructure.
Lower Noise Levels
Compared with hydraulic breakers, horizontal drum cutters generate substantially less noise, improving compliance with urban construction regulations.
Efficient Rock Excavation
For medium-hard rock formations, horizontal drum cutters provide continuous cutting that is often faster than repeated hammering.
Applications of Horizontal Excavator Drum Cutters
Horizontal milling head attachment for excavators have become essential equipment in many heavy construction industries.
Typical applications include:
Rock excavation
Tunnel construction
Foundation excavation
Road surface milling
Concrete demolition
Bridge rehabilitation
Slope stabilization
Mining operations
Canal construction
Excavation in environmentally sensitive areas

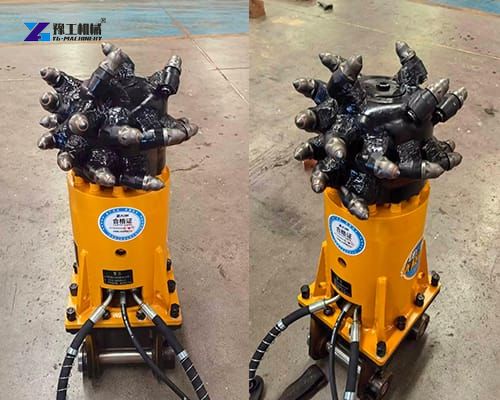

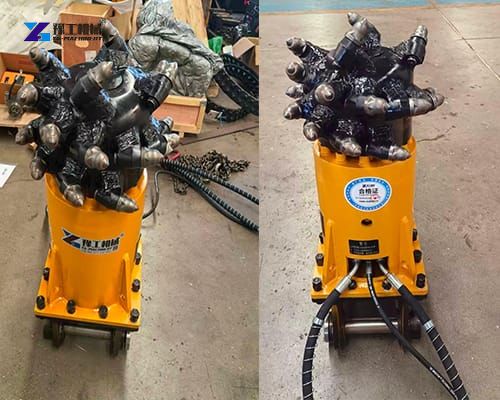

Vertical Drum Cutter
A vertical drum cutter features one or two drums positioned vertically relative to the excavator arm. Instead of cutting across a wide horizontal surface, the attachment cuts downward into the material.
Its compact structure allows operators to access narrow spaces where horizontal drum cutters cannot easily operate.
Vertical drum cutters are commonly used for:
- Narrow trench excavation
- Pipeline installation
- Utility work
- Rock cutting in confined areas
- Precision excavation
- Urban construction
- Deep slot cutting
- Selective demolition
The vertical orientation offers excellent maneuverability and flexibility, especially in restricted work environments.
How Does Vertical Drum Cutters Work?
Vertical drum cutters use vertically rotating drums to penetrate downward into hard surfaces.
The cutting force is concentrated in a narrow area, making the milling head attachment for excavator extremely efficient for deep, narrow excavations.
Because the drum rotates along the excavation path, operators can achieve clean sidewalls and highly accurate trench dimensions.
This design minimizes over-excavation and reduces unnecessary material removal.
Major Differences Between Horizontal and Vertical Drum Cutters
Although both attachments perform milling operations, several important differences affect their suitability for different applications.
Advantages of Vertical Milling Head Attachment for Excavator
Superior Trenching Accuracy
Vertical drum cutters create narrow trenches with straight sidewalls, reducing excavation volume and backfill costs.
Excellent Maneuverability
Their compact design allows operators to work in locations where larger attachments cannot fit.
Ideal for Utility Installation
Installing gas pipelines, fiber optic cables, water lines, and electrical conduits often requires narrow, precise trenches.
Applications of Vertical Drum Cutters
Vertical drum cutters are widely used in specialized excavation tasks.
Common applications include:
Pipeline trenching
Cable installation
Urban utility projects
Narrow foundation trenches
Precision rock cutting
Concrete slot cutting
Building renovation
Underground infrastructure maintenance
Selective demolition
Drainage construction
Horizontal milling head attachment for excavator generally outperform vertical models in large open areas because they remove more material with each pass.
Comparisons of Horizontal and Vertical Drum Cutter
Cutting Direction
Horizontal drum cutters remove material across a wide surface.
Vertical drum cutters cut downward into narrow spaces.
Working Width
Horizontal drum cutters generally provide a wider cutting path.
Vertical drum cutters create narrower, deeper cuts.
Project Flexibility
Horizontal models excel in large-scale excavation projects.
Vertical models perform better in confined construction environments.
Precision
Both offer excellent accuracy, but vertical cutters often provide superior precision for trenching and utility installation.
Material Removal Rate
Horizontal cutters usually remove larger volumes of material in less time, making them ideal for high-production projects.
Vertical cutters prioritize accuracy over maximum production.
Accessibility
Vertical drum cutters easily reach tight spaces, corners, and narrow trenches.
Horizontal cutters require more operating space.
