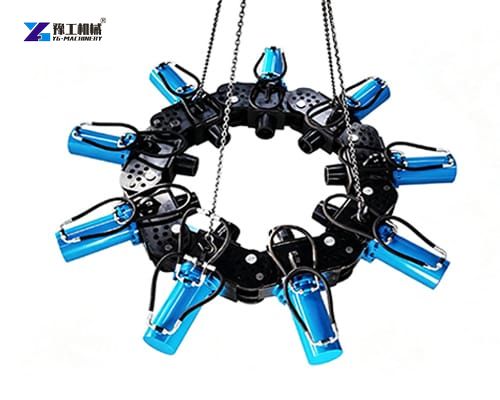

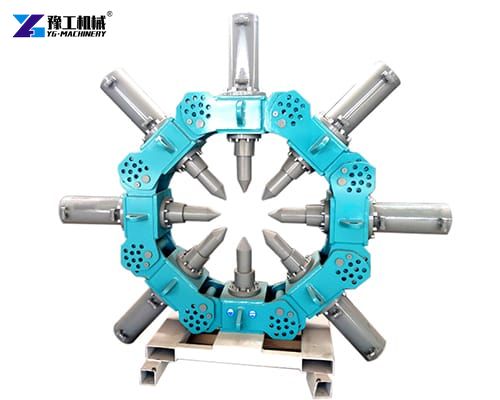

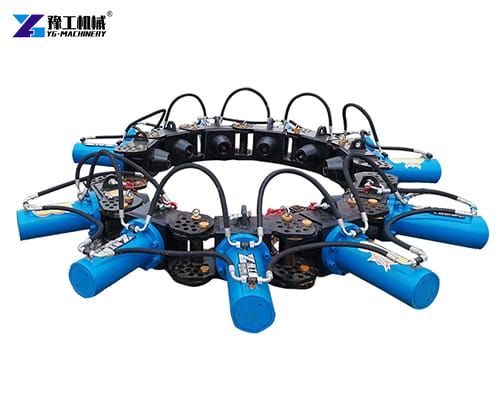

Hydraulic concrete pile breaker is a specialized attachment designed for excavators or hydraulic power stations. Its primary function is to break and remove the upper portion of concrete piles, exposing the reinforcing bars so they can be properly anchored into the pile cap or foundation. The machine operates through multiple wedge-shaped modules that are driven into the pile simultaneously using hydraulic pressure. These modules are arranged in a ring around the pile circumference. When activated, the wedges are pushed towards the pile, creating a horizontal fracture at the desired cut-off level. The result is a clean, even break that preserves the integrity of the vertical rebar inside the pile. Are you looking for a concrete pile breaker for pile breaking? For more detailed information, welcome to contact us freely.
Parameters of Hydraulic Concrete Pile Breaker
| Model | YG-800 | YG-980 | YG-1150 | YG-1300 | YG-1500 | YG-1650 | YG-1800 | YG-2000 | YG-2150 | YG-2300 | YG-2500 |
| Applicable pile diameter | 600-800mm | 800-900mm | 1100-1150mm | 1150-1300mm | 1300-1500mm | 1500-1650mm | 1650-1800mm | 1800-2000mm | 2000-2150mm | 2150-2300mm | 2300-2500mm |
| Number of modules | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 |
| Machine weight | 2400kg | 2700kg | 3000kg | 3300kg | 3600kg | 3900kg | 4200kg | 4500kg | 4800kg | 5100kg | 5400kg |
| Applicable excavator model | 20-30T | 20-30T | 20-30T | 30-40T | 30-40T | 30-40T | Hydraulic pump station | Hydraulic pump station | Hydraulic pump station | Hydraulic pump station | Hydraulic pump station |
| Cylinder stroke | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm | 250mm |
| Working pressure | 35Mpa | 35Mpa | 35Mpa | 35Mpa | 35Mpa | 35Mpa | 35Mpa | 35Mpa | 35Mpa | 35Mpa | 35Mpa |
| Oil storage capacity of a single module | 5L | 5L | 5L | 5L | 5L | 5L | 5L | 5L | 5L | 5L | 5L |
| Breaking force | 70T | 70T | 70T | 70T | 70T | 70T | 70T | 70T | 70T | 70T | 70T |
How Does a Hydraulic Pile Breaker Work?

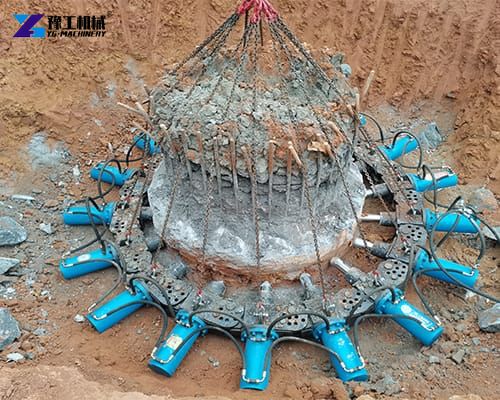

The operating principle is straightforward. The breaker is positioned around the pile at the required breaking level. Hydraulic pressure is then supplied to the cylinders, which push their working components inward against the concrete from multiple directions.
Rather than concentrating force at one point, the hydraulic system distributes pressure around the pile. Concrete is strong in compression but considerably more vulnerable to tensile stress. The combined radial pressure therefore creates cracking along the intended horizontal section.
Once the concrete has fractured sufficiently, the unwanted pile head can be removed, and the remaining pile can be prepared for the next construction stage. The process is fundamentally different from hammering the pile with a conventional impact tool.
This distinction matters because pile head preparation requires control, not simply force. Excessive impact can create unnecessary vibration and irregular breakage. A hydraulic system provides a more controlled way to apply pressure and repeat the same process across a group of piles.

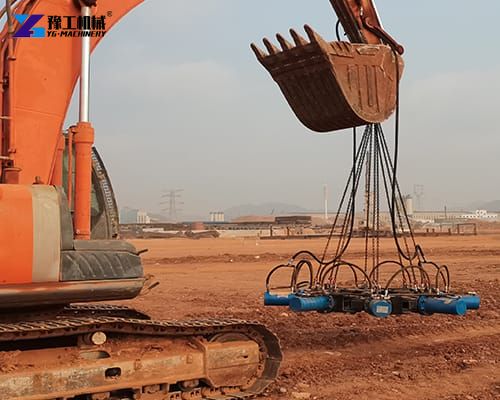

The machine can be connected to a suitable excavator or, depending on the configuration, operated with an independent hydraulic power station. This gives contractors flexibility when choosing the carrier or power source for a particular site.
Core Advantages: Why Choose a Hydraulic Pile Breaker?
1. Exceptional Efficiency and Speed
Time is money, particularly on large infrastructure projects where pile foundations number in the hundreds or thousands. A hydraulic pile breaker can complete the crop in a fraction of the time required by manual methods.
The modular design allows the machine to adapt to varying pile diameters quickly. Changing modules is straightforward, minimizing downtime between different pile sizes on the same job site.
2. Protection of Reinforcement Bars
One of the most costly mistakes in pile cropping is damaging the rebar. Bent, broken, or nicked steel reinforcement reduces structural integrity and may require expensive remediation or even replacement of the entire pile.
Hydraulic pile breakers are engineered to apply force only to the concrete, leaving the steel bars untouched. The wedge modules are precisely shaped to fit between the rebar cage, exerting pressure directly on the concrete matrix.
3. Reduced Noise and Vibration Levels
Urban construction sites face strict noise regulations, and neighboring communities are increasingly sensitive to vibration disturbances.
The hydraulic pile breaker operates at much lower decibel levels because it uses continuous hydraulic pressure rather than percussive impacts. This makes it ideal for city-center projects, hospital or school zones, and any environment where noise restrictions are tight.
4. Safer Working Conditions
Manual pile breaking involves workers positioned dangerously. With a hydraulic pile breaker, the operation is fully controlled from the excavator cab. Workers maintain a safe distance while the attachment does the heavy lifting.
Furthermore, the clean fracture means fewer flying concrete shards and less dust generation.

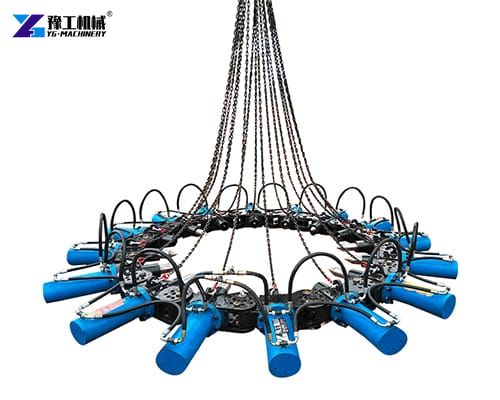

Modular Design: Scalable Performance for Different Pile Diameters

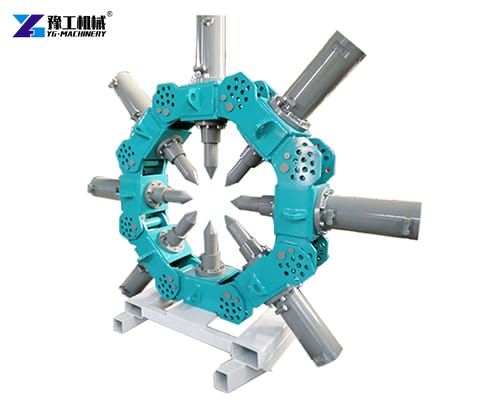

One of the most distinguishing features of a hydraulic concrete pile breaker is its modular construction. The machine is built from individual wedge modules—each containing its own hydraulic cylinder—that can be added or removed to match different pile diameters.
Smaller configurations with fewer modules suit piles around 600–800 mm in diameter, while larger setups with 16–18 modules handle diameters up to 2300–2500 mm. This scalability means you can purchase a single pile breaker base unit and expand its module capacity as your project demands change—a cost-effective approach for businesses handling varied pile sizes.
This modularity also simplifies maintenance and repair. If one module experiences wear or damage, it can be replaced individually without retiring the entire machine. Spare parts inventory becomes more manageable, and downtime is minimized.

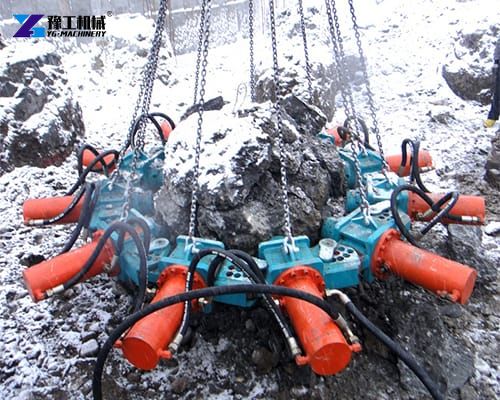

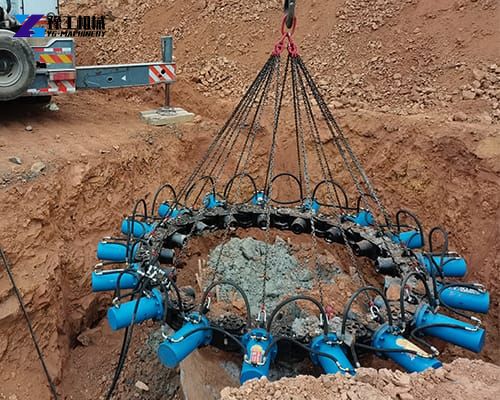

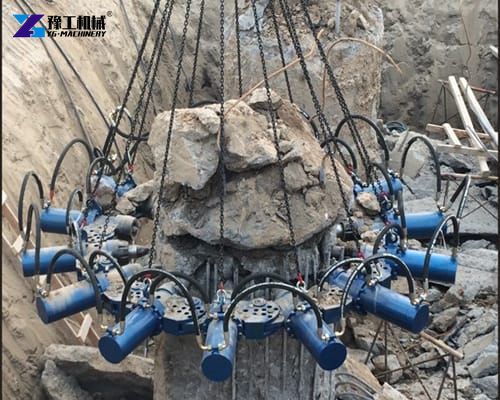

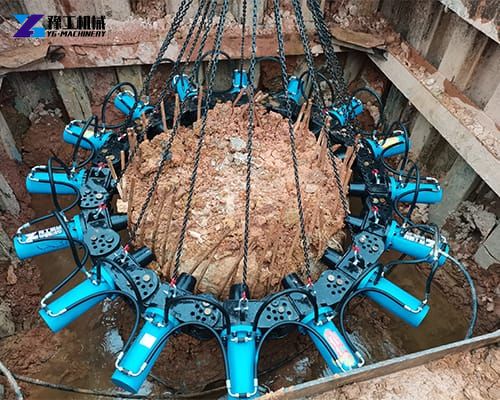

Application Scenarios: Where Hydraulic Pile Breakers Excel?
Hydraulic pile breakers are used across a wide range of construction sectors. Understanding where they add the most value can guide your purchasing decisions.
Bridge and Highway Construction
Bridges and elevated roadways rely heavily on deep foundation piles. The need to crop hundreds of piles to exact cut-off levels makes hydraulic breakers indispensable. Their precision reduces rework and ensures that pile caps are poured on schedule.
High-Rise Buildings and Skyscrapers
Urban high-rise projects often feature large-diameter piles to support massive structural loads. A hydraulic pile breaker capable of handling 2,000 mm plus diameters ensures that foundation work proceeds without bottlenecks.
Ports, Docks, and Marine Structures
Marine environments present unique challenges—corrosion, tidal timing, and confined working spaces. Hydraulic pile breakers offer reliable performance in these demanding conditions, and their quiet operation is especially valued in port areas where noise restrictions apply.
Retaining Walls and Slope Stabilization
In projects involving retaining walls or slope anchors, pile cropping must be executed with precision to ensure proper connection with wall elements. The clean break and rebar preservation capabilities of hydraulic breakers are critical here.
Selection Criteria: How to Choose the Right Model for Your Needs?
Pile Diameter Range
This is the most obvious but also the most critical factor. Assess the typical pile diameters on your current and upcoming projects. If you work primarily with medium-diameter piles (800–1,500 mm), a 10–12 module machine should suffice. However, if you’re engaged in heavy civil works requiring 2,000 mm+ piles, invest in a larger configuration from the outset.
Excavator Compatibility
Match the pile breaker weight and hydraulic flow requirements to your existing excavator fleet. For models up to around 4,000 kg, a 30-ton excavator is suitable. Heavier units may need a 40-ton machine or a separate hydraulic pump station.
Module Count Flexibility
Consider whether the manufacturer offers easy module addition or removal. Some designs allow field adjustments without specialized tools, which is a major advantage for contractors with varying project demands.
Build Quality and Materials
Seek machines built from high-strength steel with hardened wear plates. The wedge modules undergo tremendous friction during operation, so material quality directly impacts service life. Ask about the hardness rating of the wedges and whether replaceable wear parts are available.
After-Sales Support and Parts Availability
Verify that the manufacturer or local dealer stocks spare modules, seals, and hydraulic components. Long lead times for replacement parts can derail project schedules. Choose suppliers with a proven track record of responsive customer support.
